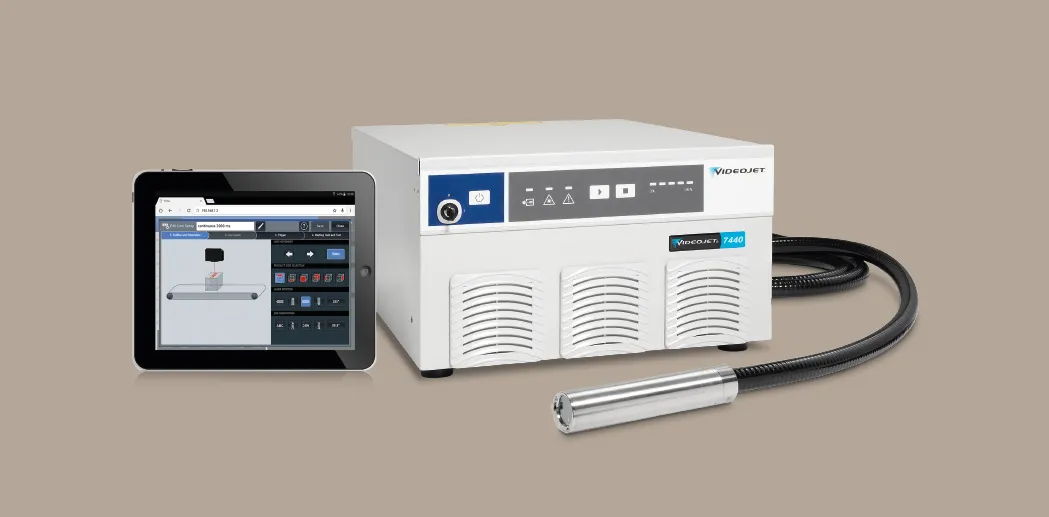

Developed to meet the needs of manufacturers who work within small spaces, the Videojet 7340 and 7440 fiber lasers feature the Lightfoot marking head, the most compact fiber laser marking head on the market.

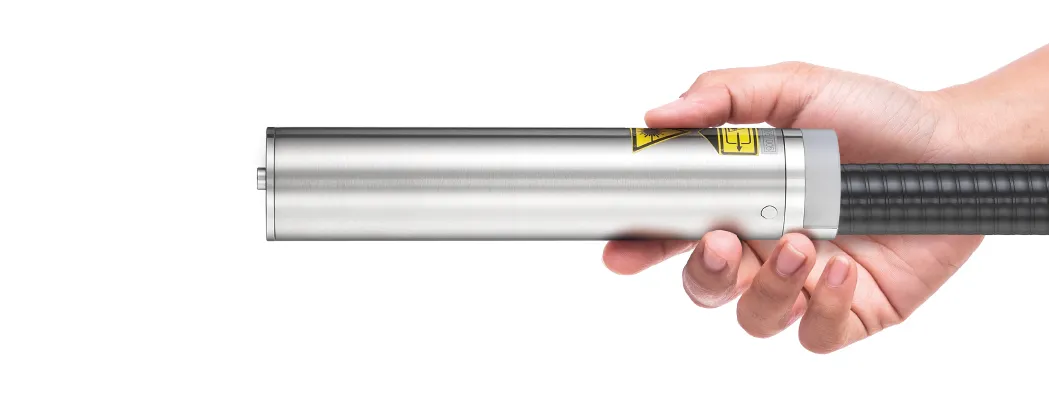

Achieve easy integration and greater versatility in tight spaces with a fiber laser marking head that weighs less than 1kg / 2.2 lbs – the smallest and lightest fiber laser head on the market. Compact in size, the 7340 and 7440 fiber laser marking head can be easily integrated into production lines or complex machinery, allowing for an increased range of laser installation opportunities.
Benefit from a versatile fiber laser solution that is fast to set up, with virtually no consumables. Reduced mounting bracketry offers easy adjustment of the fiber laser marking head, aiding faster set-up and repositioning of the laser head.
Featuring a pilot beam-based focal alignment installation process, the 7340 and 7440 offer easier, faster and more precise installation. Control the 7340 and 7440 fiber lasers through a range of familiar, easy-to-use Videojet interfaces, ensuring seamless operation within your production line.
Videojet Touch Control Software (TCS+) offers remote control through either the 10” tablet-like touchscreen or from compatible browser-based devices. The advanced Videojet CLARiTY™ laser controller is an alternative user interface, featuring an intuitive touchscreen that will be familiar to users of other Videojet marking and coding solutions.
Contact us for New Equipment Sales:
1300 02 02 04
| Specification | 7340 | 7440 |
|---|---|---|
| Laser Tube | Solid State Fiber | Solid State Fiber |
| Maximum Power | 20W | 30W |
| Laser Cooling | Fan | Fan |
| Maximum Line Speed | 900 m/min (2,940 ft/min) | 900 m/min (2,940 ft/min) |
| Environmental Protection | IP21, IP69 (laser head) | IP21, IP69 (laser head) |
| Beam Output | Steered Beam | Steered Beam |
| Laser Wavelength | 1.04 – 1.09µm | 1.04 – 1.09µm |
| Focal Distance Options | 72 – 188 mm (2.83 – 7.4 in) | 72 – 188 mm (2.83 – 7.4 in) |
| Maximum Mark Window | 126.3 x 64.46 mm (4.97 x 2.53 in) | 126.3 x 64.46 mm (4.97 x 2.53 in) |
| Standard I/O Connectivity | Product Detect, Line Encoder, Fume Extraction | Product Detect, Line Encoder, Fume Extraction |
| Optional User Interface | TCS+, CLARiTY™ Laser Controller, Smart Graph | TCS+, CLARiTY™ Laser Controller, Smart Graph |
| Plant Air Used | No | No |
| Certifications/Approvals | EtherNetIP DOC, ProfiNet/PNO certificate, CE | EtherNetIP DOC, ProfiNet/PNO certificate, CE |
“You just turn the switch on and it just works, every time.”
Operator – Automotive Fluid Storage, Carrying and Delivery Manufacturer (case study)
| Working Distance: (CFS-X) |
Working Distance (CFT-X) |
x Dimension | y Dimension | |
|---|---|---|---|---|
| Small (-S) | 72.00 | 89.00 | 37.01 | 63.58 |
| Medium (-M) | 112.50 | 129.50 | 48.27 | 89.30 |
| Large (-L) | 171.00 | 188.00 | 64.46 | 126.30 |
Standard fonts (Windows® TrueType®/ TTF; PostScript®/ PFA, PFB; Open Type®/ OTF) and individual fonts, such as high-speed or OCR
Machine-readable codes: ID-MATRIX; ECC plain; BAR CODES/ -stacked omnidirectional/-limited [CCA/B]/ expanded
Graphics/ graphic components, logos, symbols, etc. (dxf, jpg, ai, etc.)
Linear, circular, angular text marking; rotation, reflection, expansion, compression of marking contents
Sequence and serial numbering; Automatic date, layer and time coding, real-time clock;
Online coding of individual data (weight, contents, etc.)
Ytterbium (Yb) pulsed fiber laser
Power classes 20 and 30 Watt
Central emission wavelength: 1,040 – 1,090 nm (1.04 – 1.09 μm)
Digital high-speed galvanometer scan
Straight-out (CFS-x) and 90-degree (CFT-x) options
TCS+ browser-based free form onboard editor
Smart Graph software for PC; configurable in 20 languages (option)
CLARiTYTM
Browser-enabled software for intuitive creation of complex jobs on standard web browser compatible devices
Support for 27 languages
Full user access control and role definition
Event log for history of user interactions
Graphical guided line setup wizard
Easy system and parameter configuration
WYSIWYG editor
Graphic-orientated user interface for Windows®
Text / data / graphics / parameter editor
Configurable in 20 languages, e.g. in German, English, Japanese
Easy import functions for the most important file formats (dxf, jpg, ai, etc.)
Ethernet (TCP/IP, 100Mbit LAN), EtherNetIPTM, ProfiNet®, RS232, digital I/Os
Inputs for encoders and product detector triggers
I/Os for start, stop, external error, job select, trigger, trigger enable, encoder; system ready, ready to mark, marking, shutter closed, error, bad, good signals and machine/ operator interlocks
Customer-specific solutions
Direct integration into complex production lines through the laser‘s scripting interface
Integration via Ethernet and RS232 interface
Highly precise side guided height adjustment via dovetail joint or 38mm tube
100 – 240 V (autorange), 360 VA, 1 PH, 50/60 Hz
Supply unit: IP21, air cooled
Laser head: IP65, IP69, air cooled
5 – 40 °C (40 – 105 °F)/ 10 – 90 %, non-condensing
Supply unit 3m supply line – 23kg / 50.7 lbs
Supply unit 10m supply line – 27kg / 59.5 lbs
Marking unit CFT – 0.64kg / 1.4 lbs
Marking unit CFS – 0.61kg / 1.3 lbs
EtherNetIP DOC, ProfiNet/PNO certificate, CE, TÜV/NRTL, FCC
Compliance (no certification required): ROHS, CFRH/FDA
