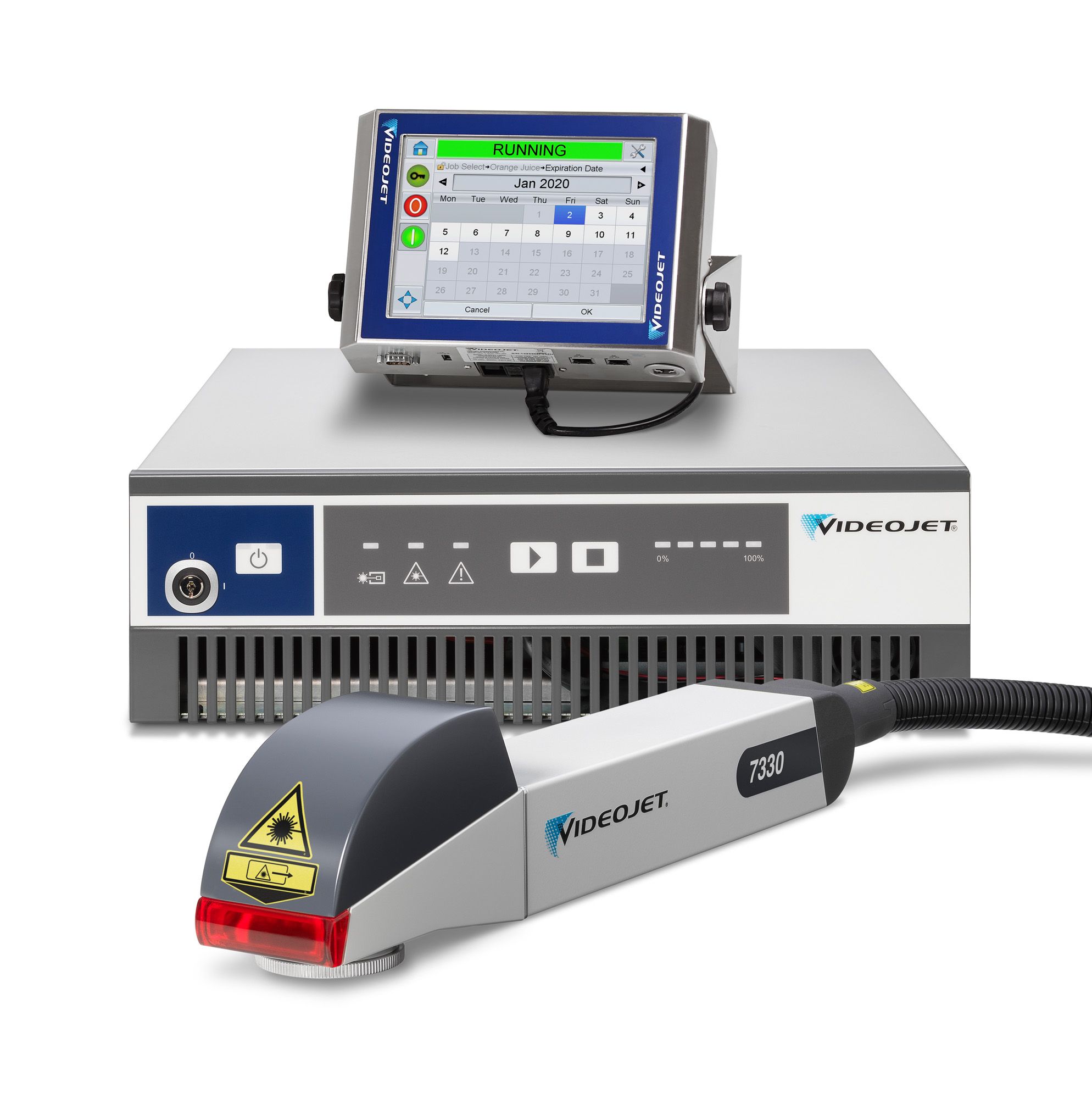

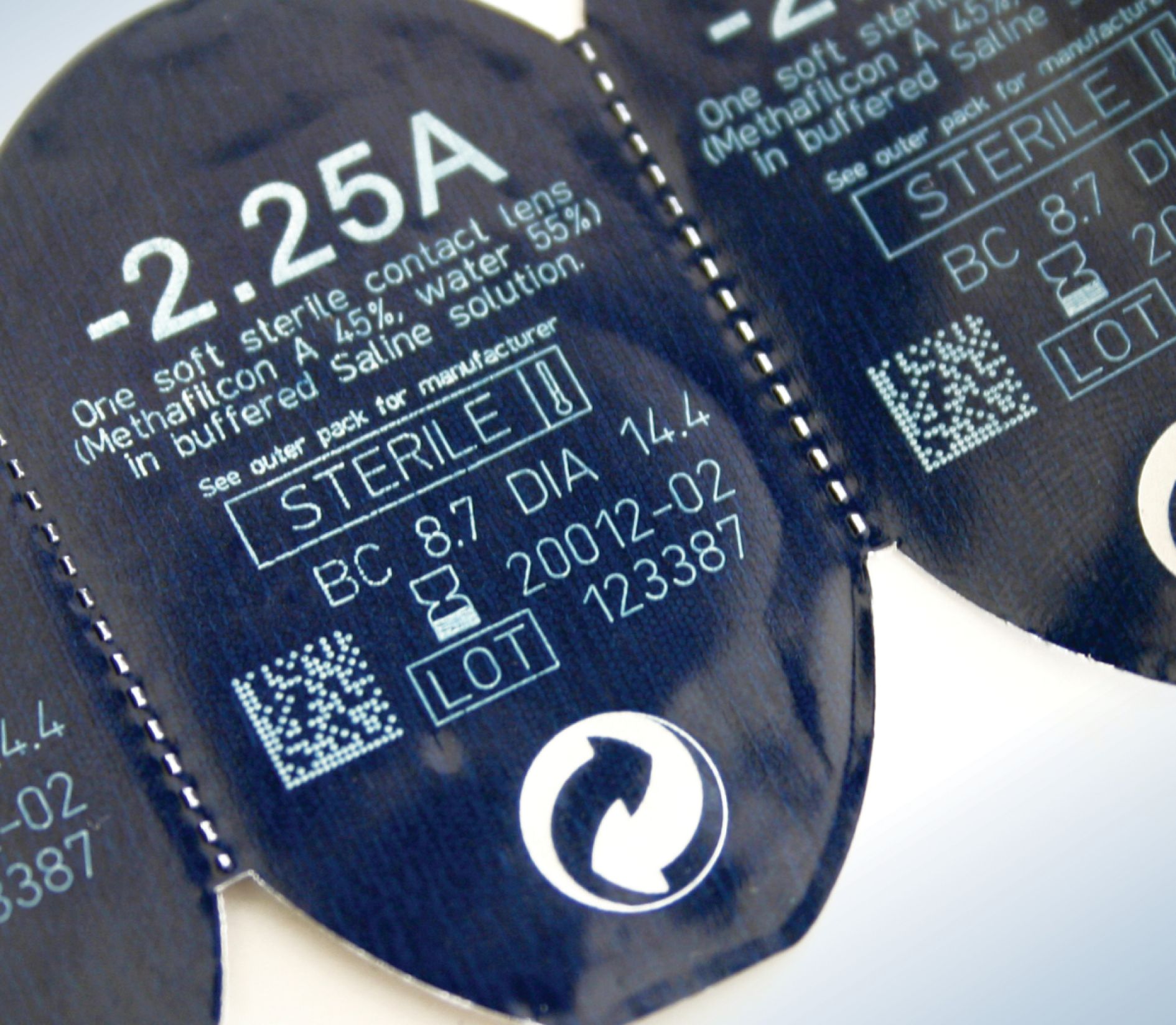

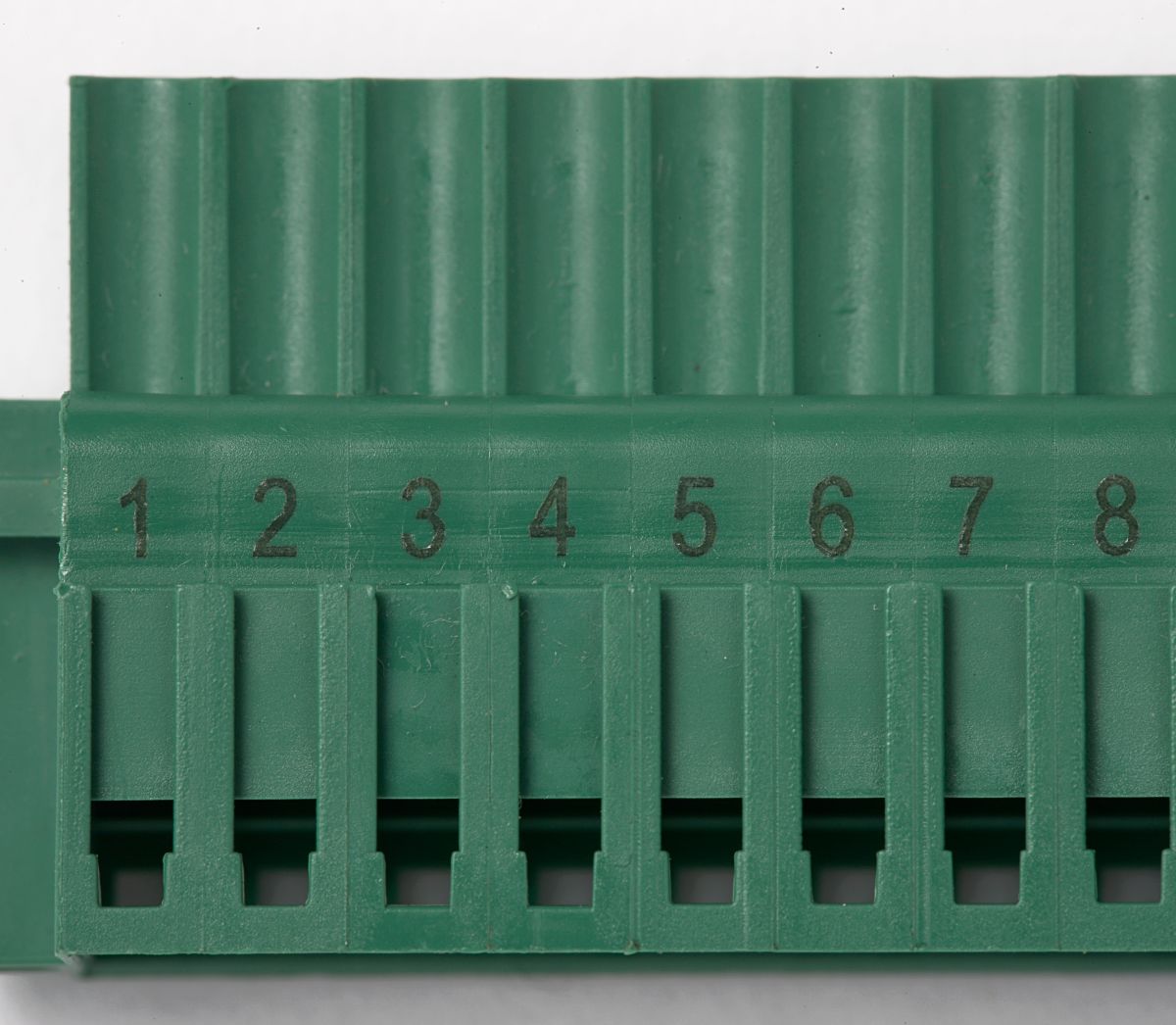

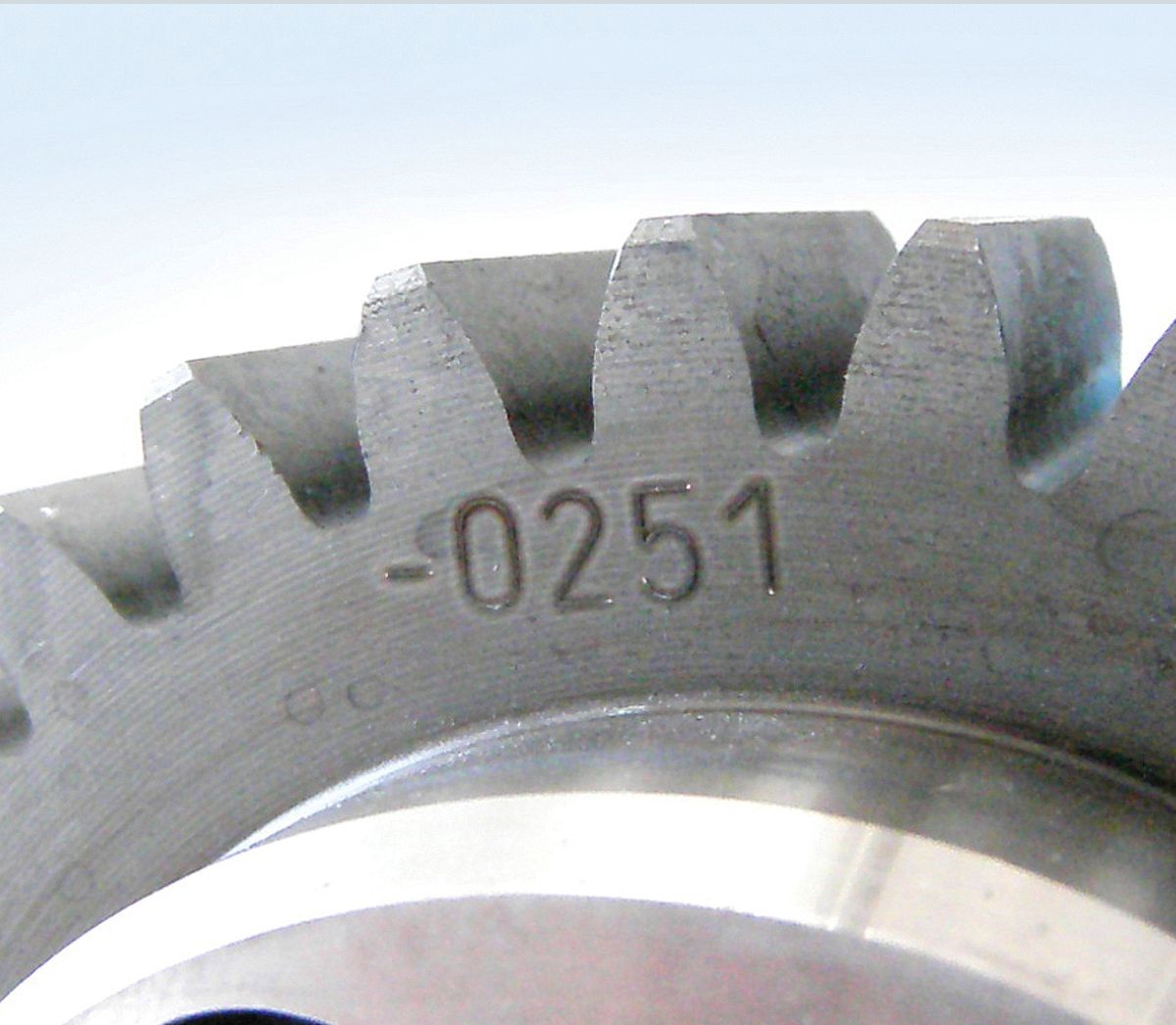

The Videojet 7330 Fiber Laser marking system has been developed to meet the needs of manufacturers who work with robust, high-density materials, and is a versatile fiber laser that offers high-speed marking, with complex data, easy operability and industry-leading integration capabilities.
The 7330 Fiber Laser marking system offers you enhanced productivity benefits by allowing you to mark more products and codes, faster than previous Videojet lasers, due to a combination of improved data processing speeds and competitive marking speeds of up to 2,000 characters per second (speed based on 6mm marking head and substrate dependent). You can also benefit from a versatile laser solution that is available with the option of a 6mm and 10mm marking head, covering a wide variety of marking and coding operations.
Achieve easy integration and greater versatility in tight spaces with a combined laser head and controller weight of less than 25kg – 44% lighter than other fiber laser providers, allowing for simple integration into complex machinery.
Choose from a variety of user interfaces to control your Videojet 7330 Fiber Laser marking system, allowing for simple operation and message creation, with a familiar look and feel touchscreen interface to help reduce user errors in production lines. Videojet Touch Control Software (TCS+) is designed to offer you flexible integration, simple operation and remote laser control through either the Videojet TU440 10.1” color touchscreen interface, or from virtually any browser-based device. Also available with the 7330 Fiber Laser, the advanced Videojet CLARiTY™ laser controller features an intuitive color touchscreen also used in other Videojet marking and coding solutions, that allows for simple operation and continuous improvement in uptime and productivity.
Contact us for New Equipment Sales:
1300 02 02 04
| Specification | Value |
|---|---|
| Laser Tube | Solid State Fiber |
| Maximum Power | 20W |
| Laser Cooling | Fan |
| Maximum Line Speed | 900 m/min (2,940 ft/min) |
| Environmental Protection | IP21, IP54 (laser head) |
| Beam Output | Steered Beam |
| Laser Source Expected Life | >100,000 hours |
| Laser Wavelength Options | 1.055 – 1.075μm |
| Focal Distance Options | 50 mm (1.96 in) – 420 mm (16.53 in) |
| Maximum Mark Window | 498.5 x 361.5 mm (19.62 x 14.23 in) |
| Standard I/O Connectivity | Product Detect, Line Encoder, Fume Extraction |
| Standard User Interface | Touch Panel (TU430) |
| Optional User Inteface | PC, CLARiTY™ Laser Controller, TCS+, Smart Graph Com |
| Plant Air Used | No |
| Certifications/Approvals | CE |
*With 6mm laser marking head
**Ethernet/IP is a trademark of ODVA. PROFINET is a registered trademark of Profibus & Profinet International (PI).
“You just turn the switch on and it just works, every time.”
Operator – Automotive fluid storage, carrying and delivery manufacturer (case study)
| 6mm marking head SHF60A | 10mm marking head SHF100 | |||||||
|---|---|---|---|---|---|---|---|---|
| Focal Length | 50 | 100 | 165 | 258 | 100 | 163 | 254 | 420 |
| Max. height/mm | 19.5 | 70.2 | 115.4 | 180.5 | 75.8 | 142.2 | 215.5 | 361.5 |
| Max. width/mm | 26 | 70.2 | 115.4 | 180.5 | 118.7 | 193.5 | 301.5 | 498.5 |
Standard fonts (Windows® TrueType®/ TTF; PostScript®/ PFA, PFB; Open Type®/ OTF) and individual fonts, such as high-speed or OCR
Machine-readable codes: ID-MATRIX; ECC plain; BAR CODES/ -stacked omnidirectional/ -limited [CCA/B]/ expanded
Graphics/ graphic components, logos, symbols, etc. (dxf, jpg, ai, etc.)
Linear, circular, angular text marking; rotation, reflection, expansion, compression of marking contents
Sequence and serial numbering; Automatic date, layer and time coding, real-time clock;
Online coding of individual data (weight, contents, etc.)
Ytterbium (Yb) pulsed fiber laser
Power classes 10 and 20 Watt
Central emission wavelength: 1,055 – 1,075nm (1.055 – 1.075μm)

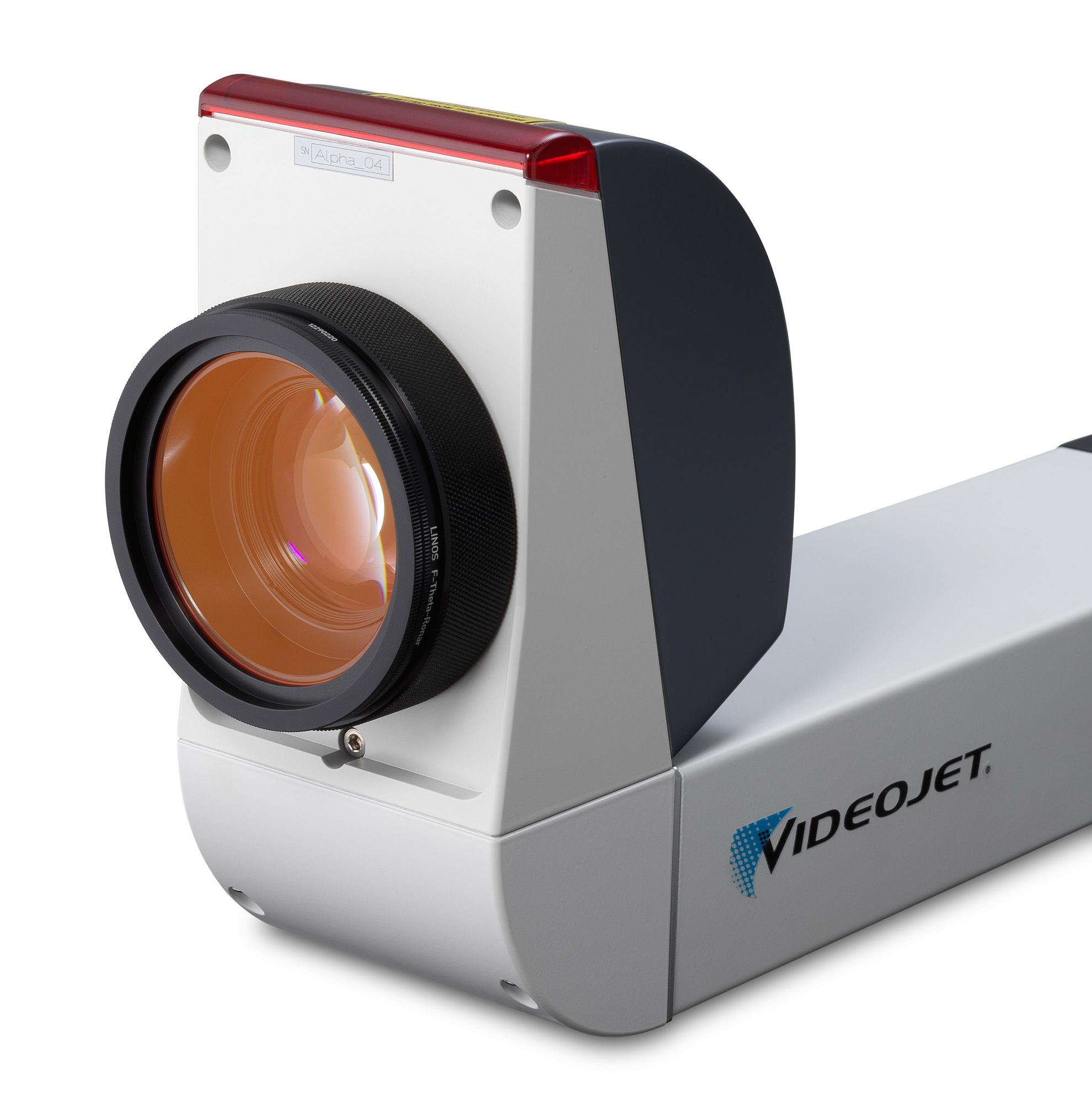

Digital high-speed galvanometer scan
90-degree (standard) and straight-out (option)
Focal lengths 6mm marking head: f = 50/ 100/ 165/ 258mm
Focal lengths 10mm marking head: f = 100/ 163/ 254/ 420mm
Integrated keypad
Handheld control unit; configurable in 16 languages (option)
Smart Graph software on PC; configurable in 20 languages (option)
Graphics-orientated user interface under Windows® for the intuitive and fast preparation of complete marking jobs on PCs
System configuration
Text/ data/ graphics/ parameter editor
Configurable in 20 languages, e.g. in German, English, Japanese
Easy access to standard CAD and graphics programs thanks to import functions for the most important file formats (dxf, jpg, ai, etc.)
WYSIWYG
Various password-protected security levels
ActiveX software interface for integration into operation software
Ethernet (TCP/IP, 100Mbit LAN), RS232, digital I/Os
Inputs for encoders and product detector triggers
I/Os for start, stop, external error, job select, trigger, trigger enable, encoder; system ready, ready to mark, marking, shutter closed, error, bad, good signals and machine/ operator interlocks
Customer-specific solutions
Direct integration into complex production lines through the laser‘s scripting interface Integration via Ethernet and RS232 interface
Highly precise side guided height adjustment via dovetail joint

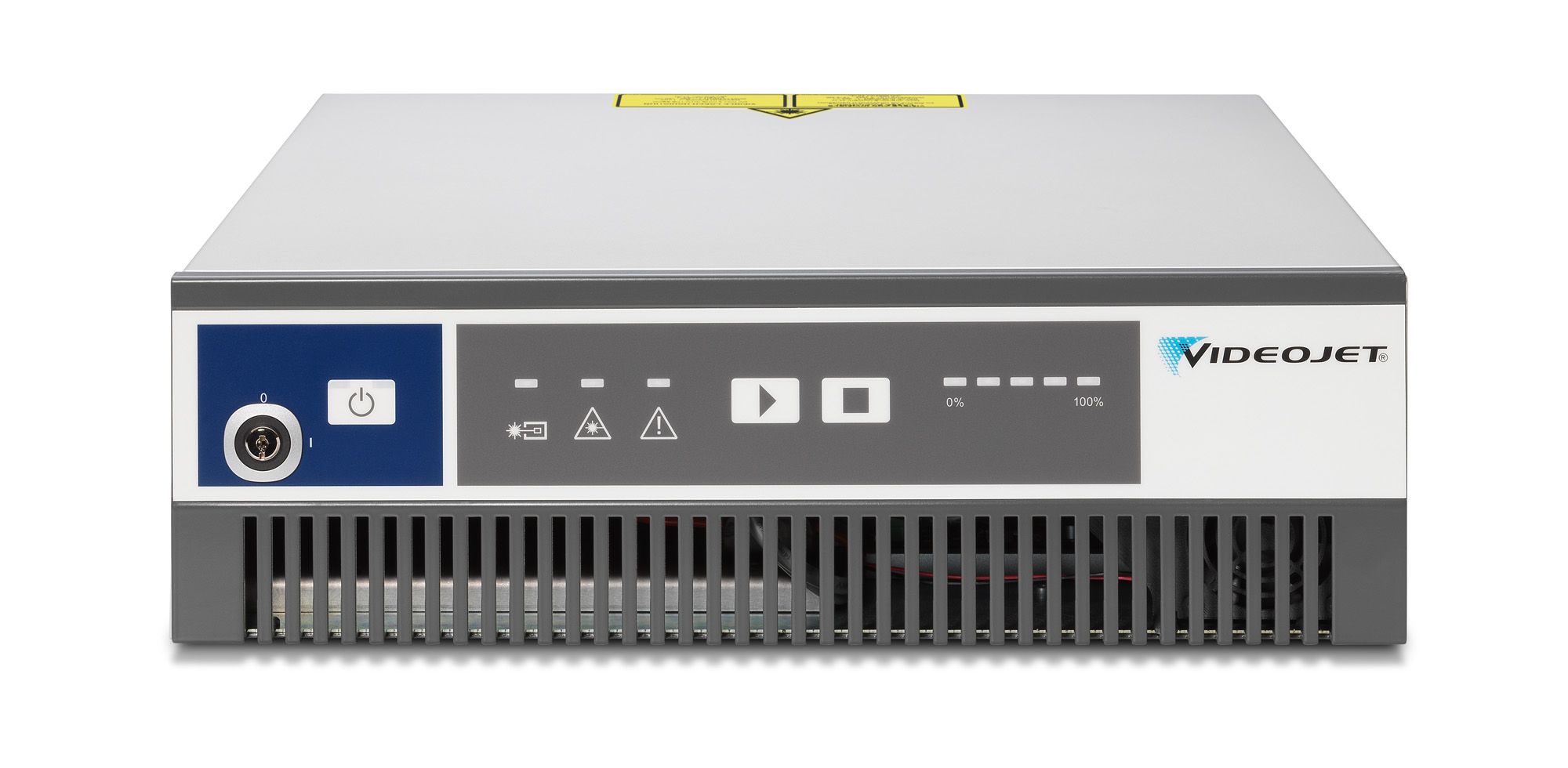

100 – 240 V (autorange), 200 VA, 1 PH, 50/60 Hz
Supply unit: IP21, air cooled
Laser head: IP54, air cooled
5 – 40° C (40 – 105° F)/ 10 – 90 %, non-condensing
Supply unit – 18.5kg / 40.8 lbs
Marking unit 6mm – 4.4kg / 9.7 lbs
Marking unit 10mm – 5.4kg / 11.9 lbs
CE, TÜV/NRTL, FCC
Compliance (no certification required): ROHS, CFRH/FDA
6mm marking head (SHF60A), standard, 90° beam exit (Drawings for other configurations available upon request)
