| Specification | Value |
|---|---|
| Printheads | 1 |
| Inks | Soft-pigmented |
| Maximum Lines of Print per Printhead | 5 |
| Maximum Line Speed(1) | 271 m/min (889 ft/min) |
| Environmental Protection | IP55 (Dust Kit IP65 #) |
| Umbilical Length | 3 m (9.8 ft) optional 6 m (19.6 ft) |
| Message Storage Capability | More than 250 complex messages |
| Smart Cartridge™ | Included |
| Plug and Play Printhead Modules | Included |
| USB | Included |
| Communications | Ethernet LAN™; Built-in Wi-Fi; optional Cellular connectivity |
| Linear and 2D Bar Codes | Included |
| Positive Air / CleanFlow™ | Optional |
| Display (User Interface) | SIMPLICiTY™ based 10 inch color touchscreen |
(1) Based upon single line, 10 characters per inch
Can print 1 to 5 lines of print at speeds of up to 889fpm (271mpm) (10 characters per inch, single line of print)
Single-line: 5×5, 5×7, 7×9, 9×12, 10×16, 16×24, 25×34
Twin-line: 5×5, 5×7, 7×9, 9×12, 10×16
Tri-line: 5×5, 5×7, 7×9
Quad-line: 5×5, 5×7
Five-line: 5×5
UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128;
Code 39; Interleaved 2 of 5
21×21, 25×25, 29×29, 33×33
Error correction mode L, M, Q or H
10×10, 12×12, 14×14, 16×16, 8×18, 18×18, 20×20, 22×22, 24×24, 12×26, 26×26, 8×32, 32×32, 12×36, 16×36, 16×48
Selectable from 0.079” (2mm) to 0.40” (10mm), depending on font
Optimal: 0.472” (12mm)
Range: 0.197” (5mm) to 0.591” (15mm)

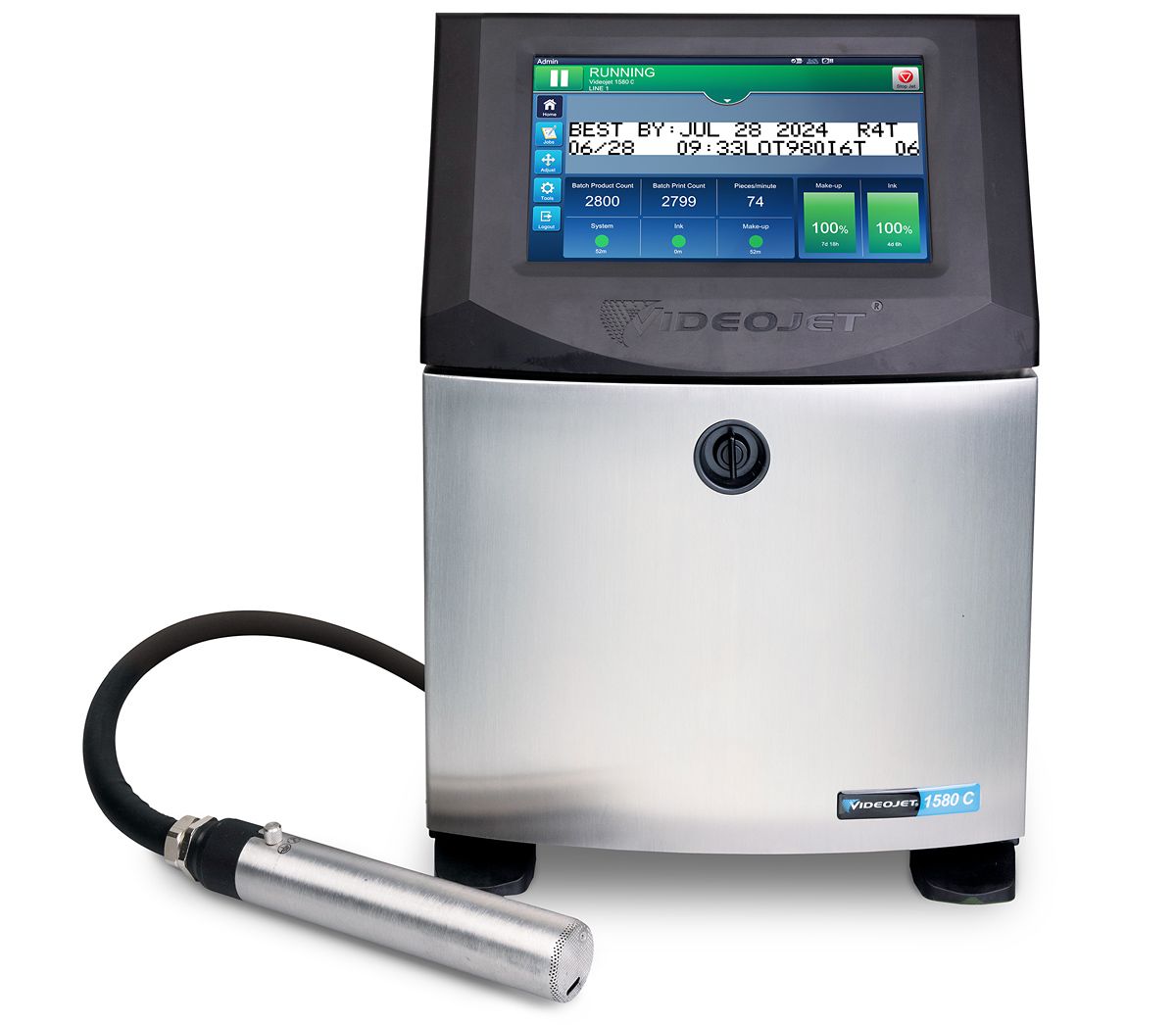

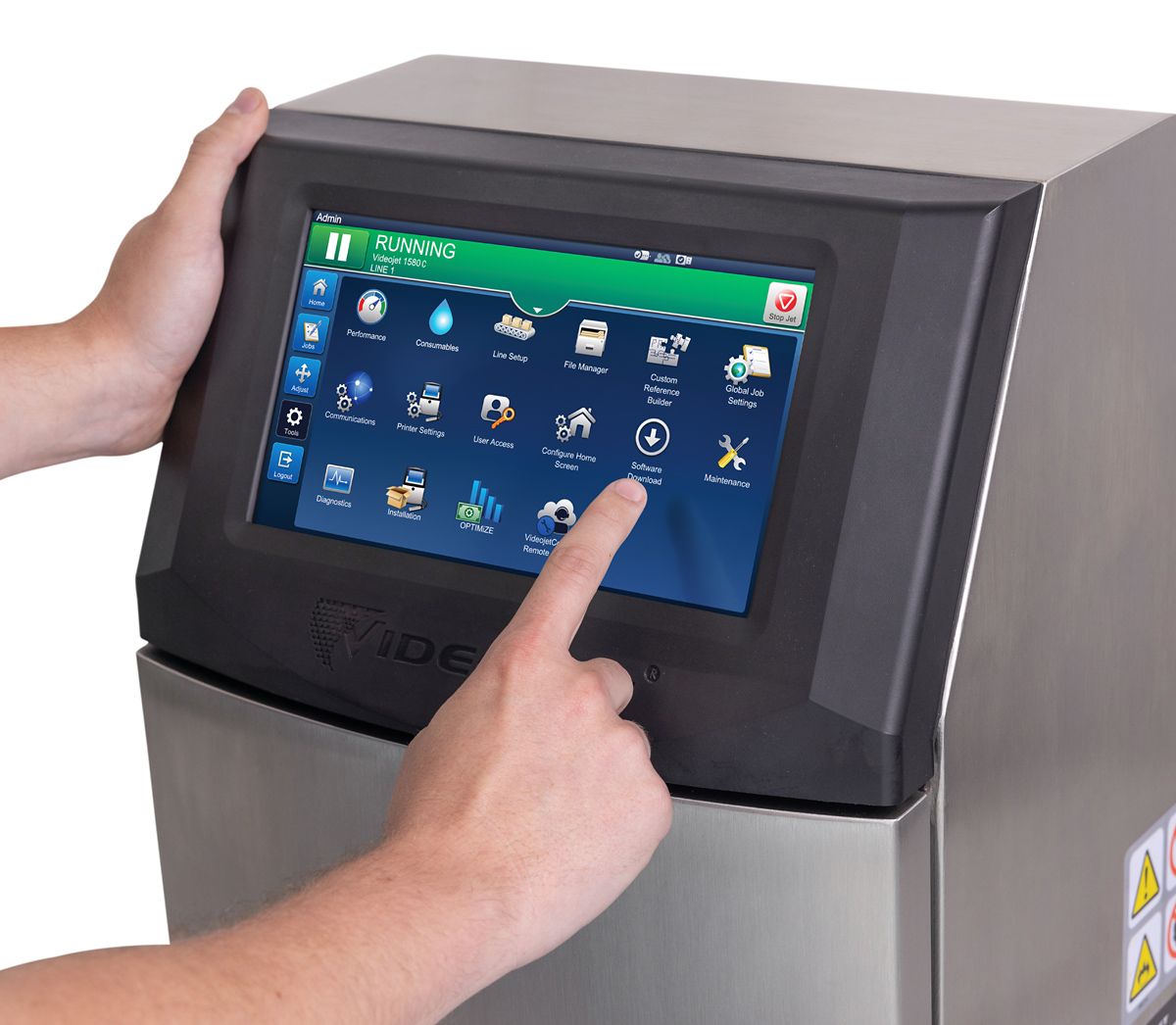

10.4” high-response TFT-LCD touch screen
WYSIWYG touch to edit message editing
Can be created via optional CLARiSOFTTM software
(CLARiSOFT Package Coding Design software required for advanced functionality)
Chinese, Russian/Bulgarian, Turkish/Scandinavian, Romanian, Greek, Arabic, Japanese/Kanji, Hebrew, Korean, East European and European/American
5.0ml per hour (MEK at 20°C)
English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Serbian, Simple Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese
Product detect input
Encoder input
Beacon (Alarm light) output
Relay output
USB 2.0 (2x)
Ethernet LAN™
Built-in Wi-Fi
More than 250 complex messages

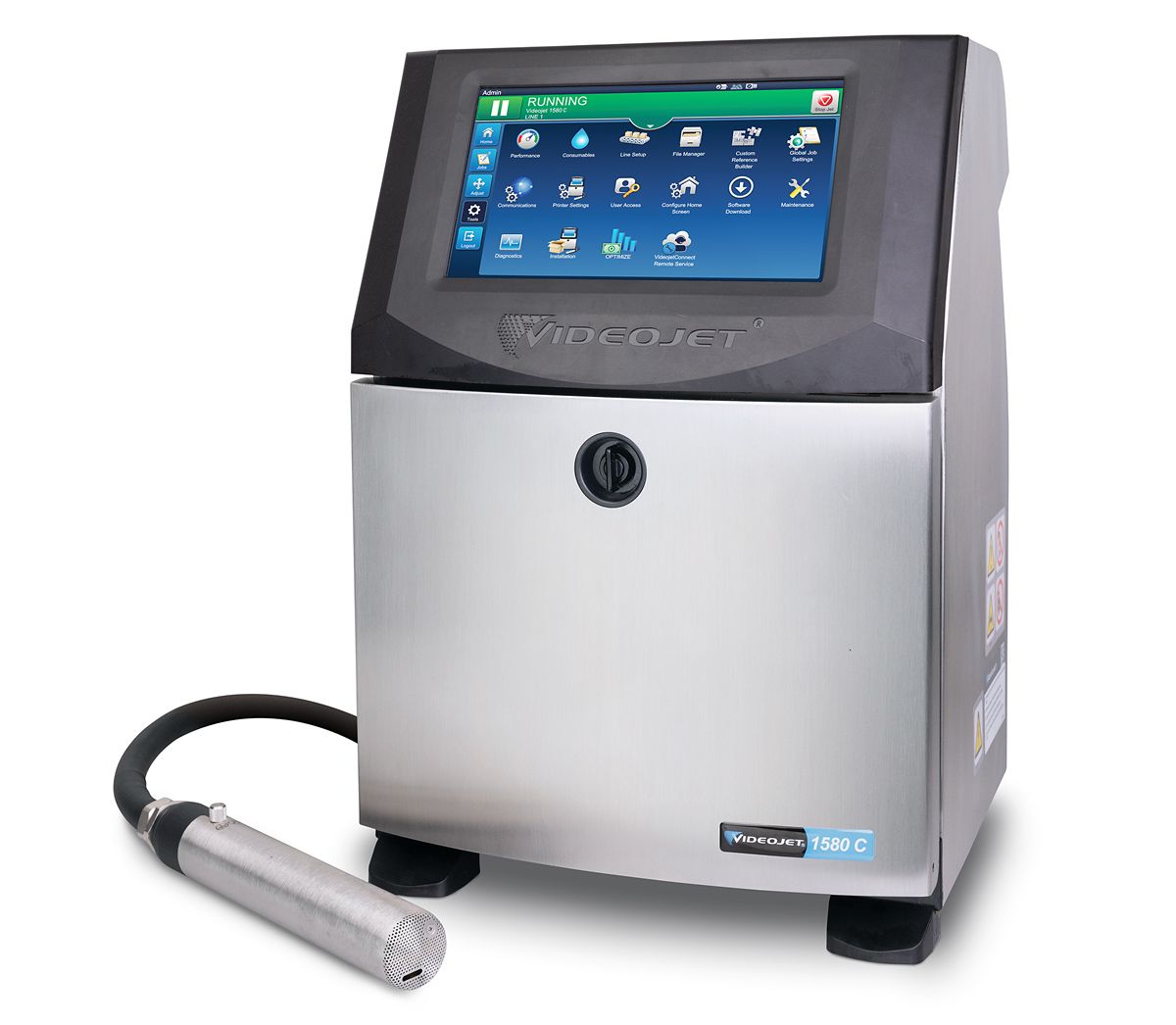

IP55 standard, stainless steel cabinet
IP65 protected electronics (optional with dust protection kit)
Heated printhead
CleanFlow™ including positive air, no plant air required (optional)
Diameter: 1.63” (41.3mm)
Length: 10.62” (269.8mm)
Ultra flexible
Length: 9.84’ (3m) optional 19.69’ (6m)
Diameter: 0.91” (23mm)
Bend radius: 4.0” (101.6mm)

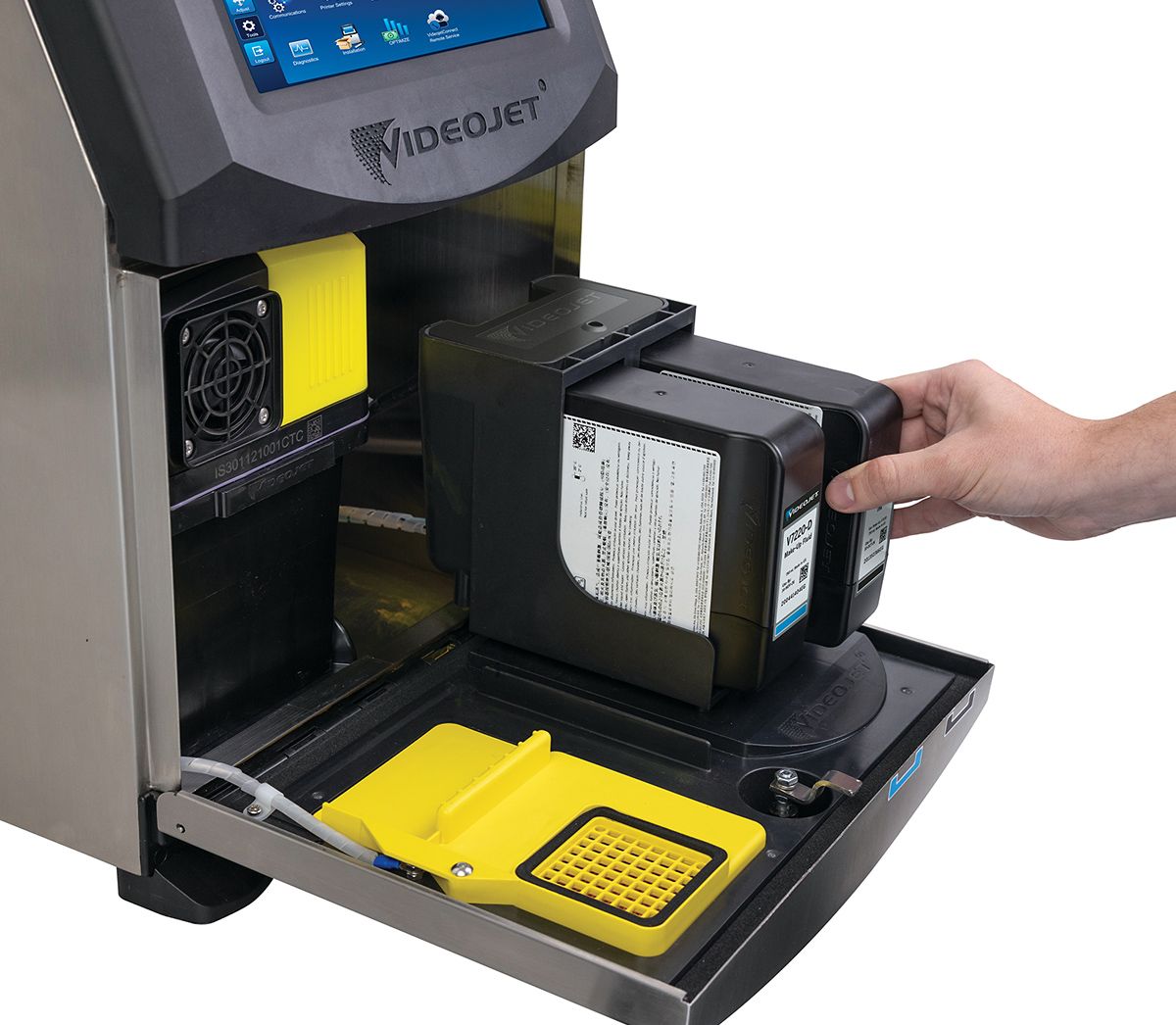

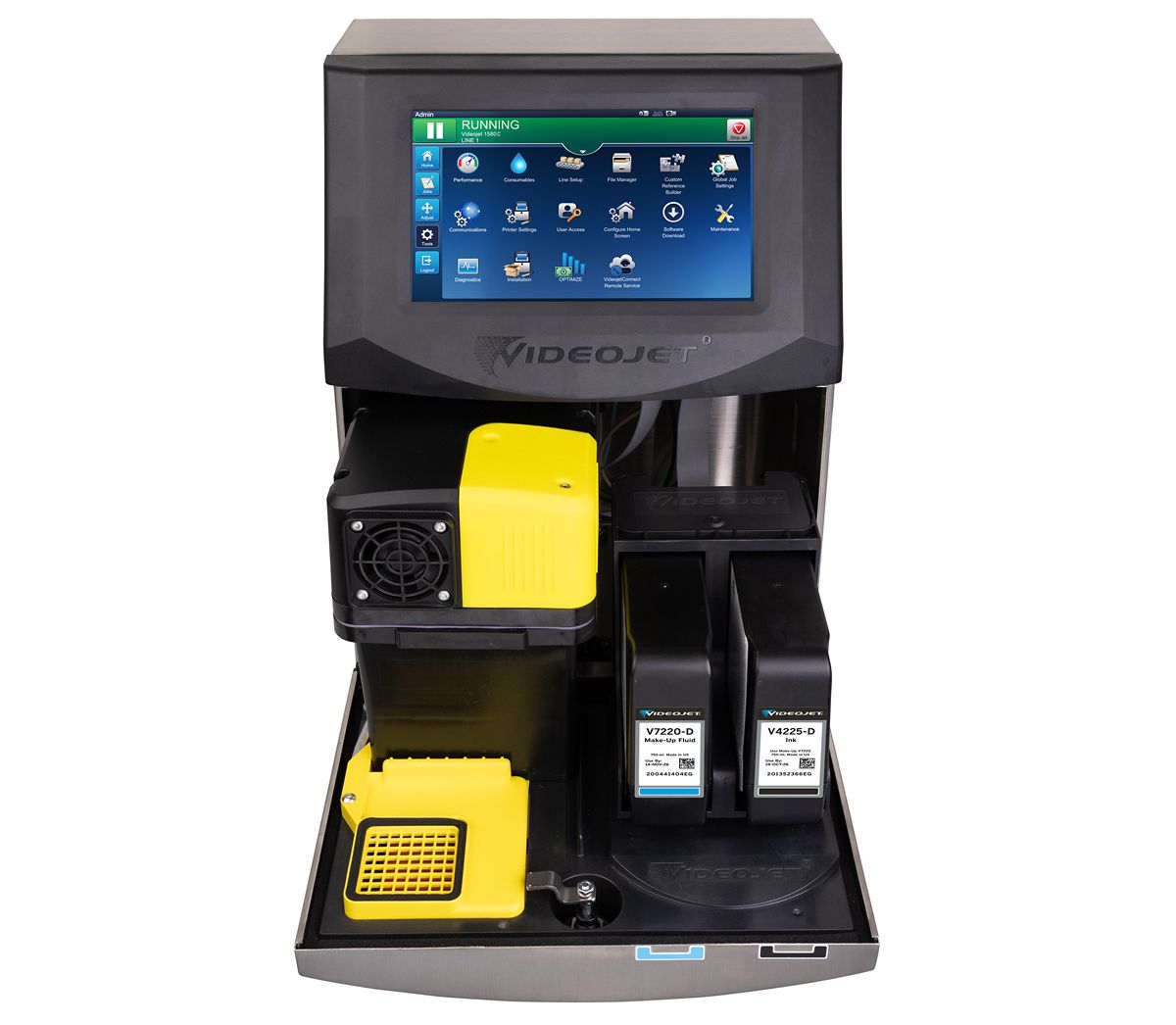

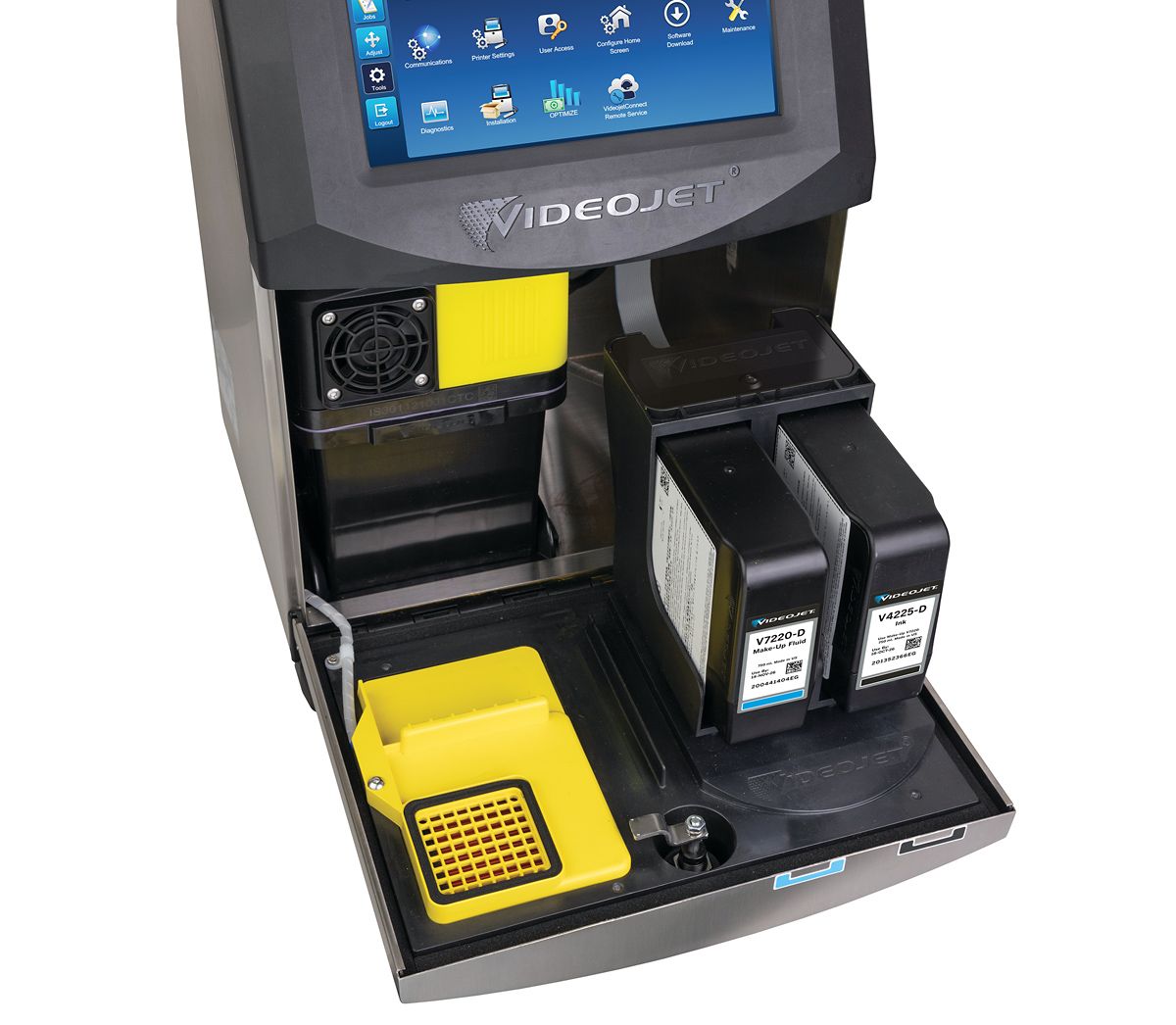

Ink Smart Cartridge™ 0.740 qt. (700ml)
Make-up Smart Cartridge™ 0.793 qt. (750ml)
32°F to 122°F (0°C to 50°C)
0% to 90% RH non-condensing
With selected inks; actual installation may require additional hardware based on production environment conditions
Nominal supply power 100-240 VAC at 50/60 Hz, 70W
Unpacked and dry: 46.3lbs. (21kg)
Dust protection kit with CleanFlow™ technology
Dry air kit for high humidity (requires plant air)
RS232 connector kit (USB to Serial DIN-5 male adapter)
SIMPLICiTY™ Workflow Modules
Wide range of accessories
90 degree printhead
Utilizing pigmented inks, the Videojet 1880 C inkjet printer delivers bold, high-contrast codes while offering the operation and maintenance like a dye-based printer. The result is less operator intervention, more uptime, and confidence in your operation.
