| Specification | Value |
|---|---|
| Printheads | 1 |
| Inks | Dye Based |
| Maximum Lines of Print | 3 |
| Maximum Line Speed(1) | 508 m/min (1,666 ft/min) |
| Environmental Protection | IP55, IP66 |
| Umbilical Length | 3m (9.8 ft) optional 6m (19.6 ft) |
| Message Storage Capability | More than 250 |
| Smart Cartridge™ | Included |
| Plug and Play Printhead Modules | Included |
| USB | Included |
| Communications | Ethernet LAN and RS-232 Serial (requires RS232 connector kit) |
| Positive Air / CleanFlow™ | Included |
| Expanded I/O Ports and Control | # |
| Display (User Interface) | SIMPLICiTYTM based 10.4 inch color touchscreen |
*Subject to availability in your country
Can print 1 to 3 lines of print at speeds of up to:
(10 characters per inch, single line of print)
Single-line: 4×5, 5×5, 4×7, 5×7, 7×9, 9×12, 10×16, 16×24
Twin-line: 4×5, 5×5, 4×7, 5×7, 7×9
Tri-line: 4×5, 5×5, 4×7, 5×7
UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128; Code 39;
Interleaved 2 of 5; GS1
10×10, 12×12, 14×14, 16×16, 8×18, 18×18, 20×20, 22×22, 24×24, 12×26, 8×32, 12×36, 16×36
21×21
Error correction mode L, M, Q or H
Selectable from 0.079” (2mm) to 0.40” (10mm), depending on font
Optimal: 0.591” (15mm)
Range: 0.354” (9mm) to 0.787” (20mm)
10.4” high-response TFT-LCD touch screen
WYSIWYG touch to edit message editing
Can be created via optional CLARiSOFT™ software*
Chinese, Russian/Bulgarian, Turkish/Scandinavian, Romanian, Greek, Arabic, Japanese/Kanji, Hebrew, Korean, East European and European/American
English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Serbian, Simple Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish, and Vietnamese

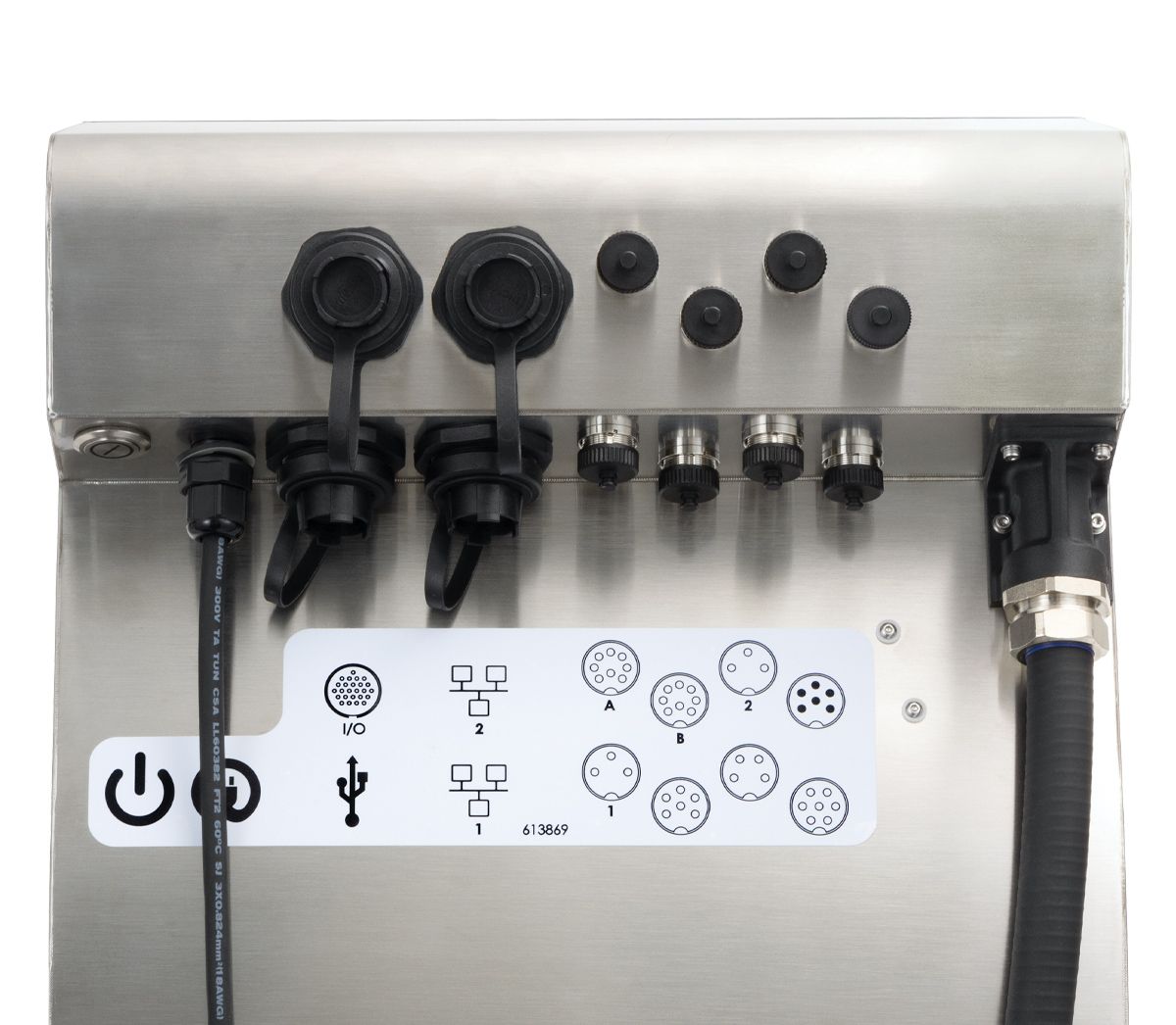

Product detect input; Encoder input; Beacon (Alarm light) output; Relay output;
USB 2.0 (2x); Ethernet LAN™; Built-in Wi-Fi
More than 250 complex messages
IP55 standard, no plant air required, stainless steel cabinet
IP66 protected electronics optional
CleanFlow™ including positive air, no plant air required (optional)

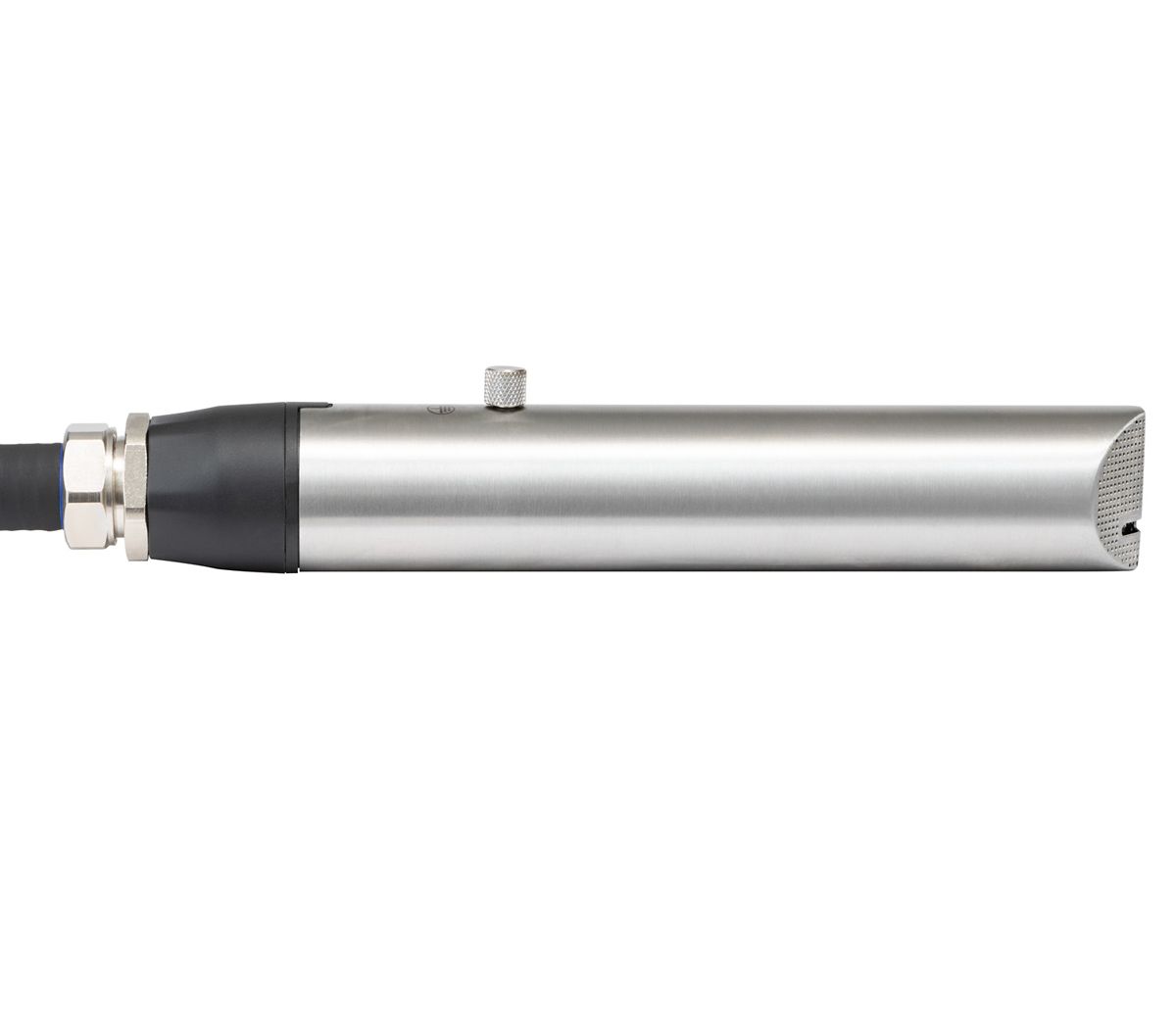

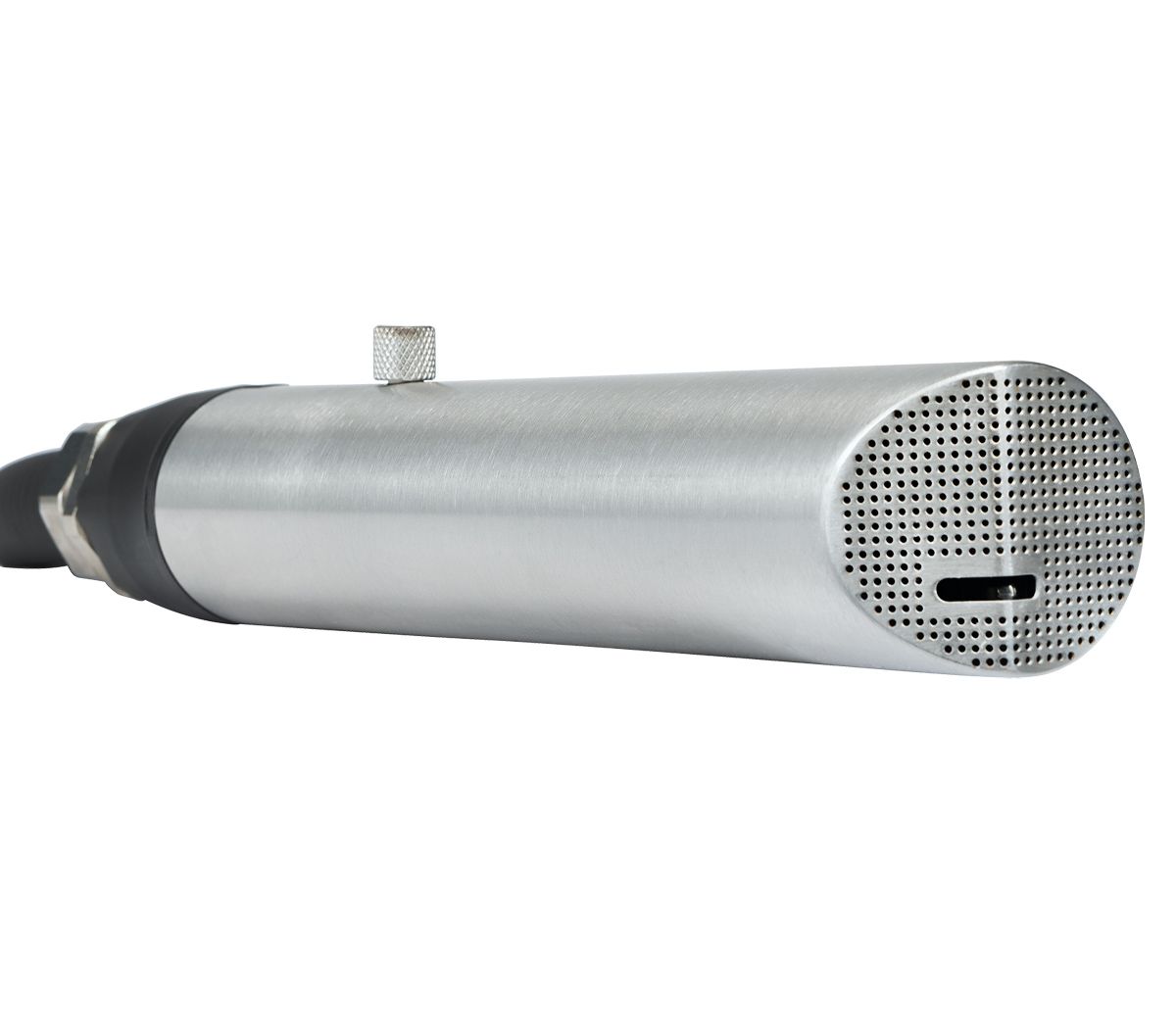

Diameter: 1.63” (41.3mm)
Length: 10.62” (269.8mm)
Ultra flexible Length: 9.84’ (3m) optional 19.69’ (6m)
Diameter: 0.91” (23mm)
Bend radius: 4.0” (101.6mm)
2.7ml per hour (MEK at 20°C)

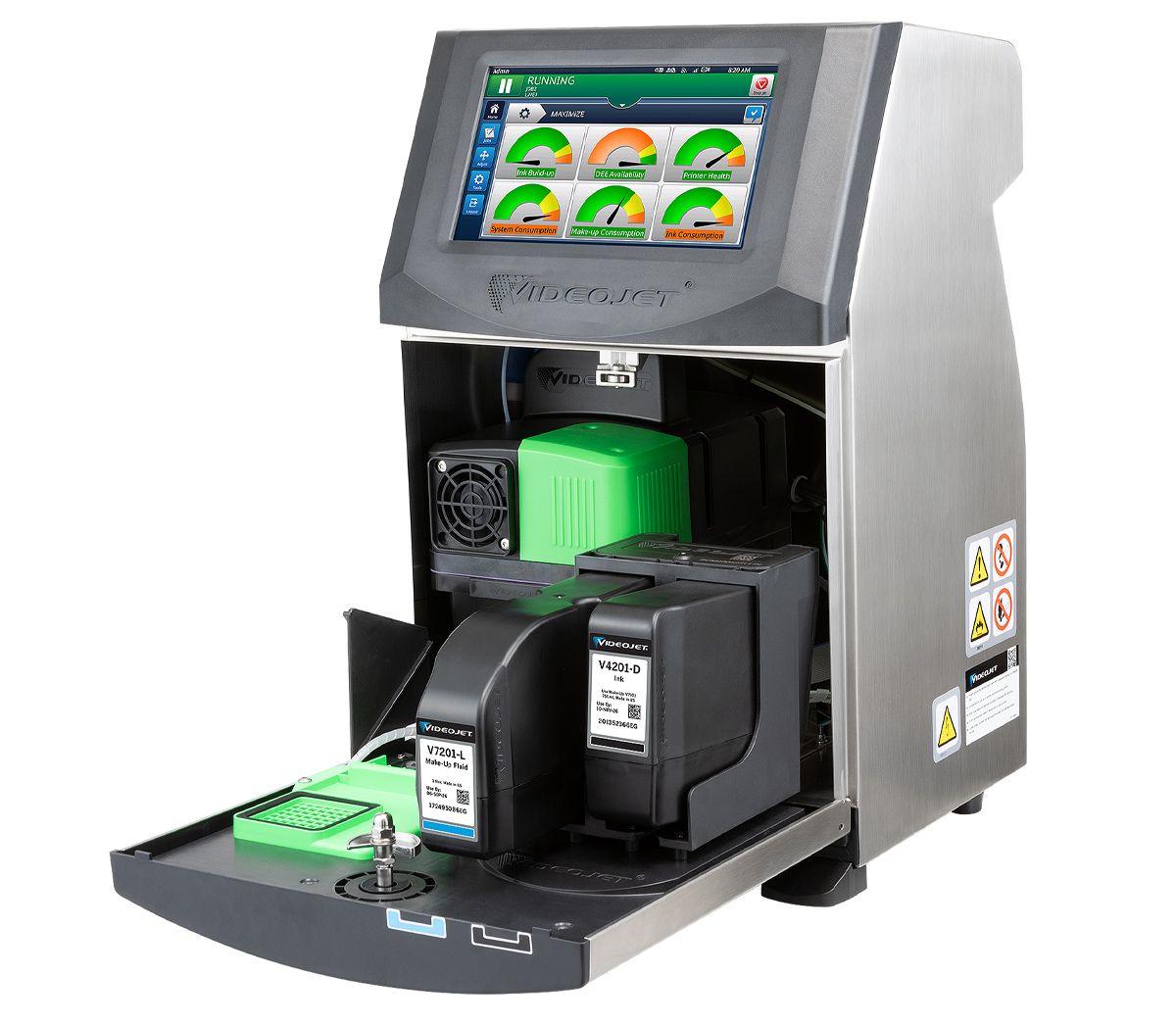

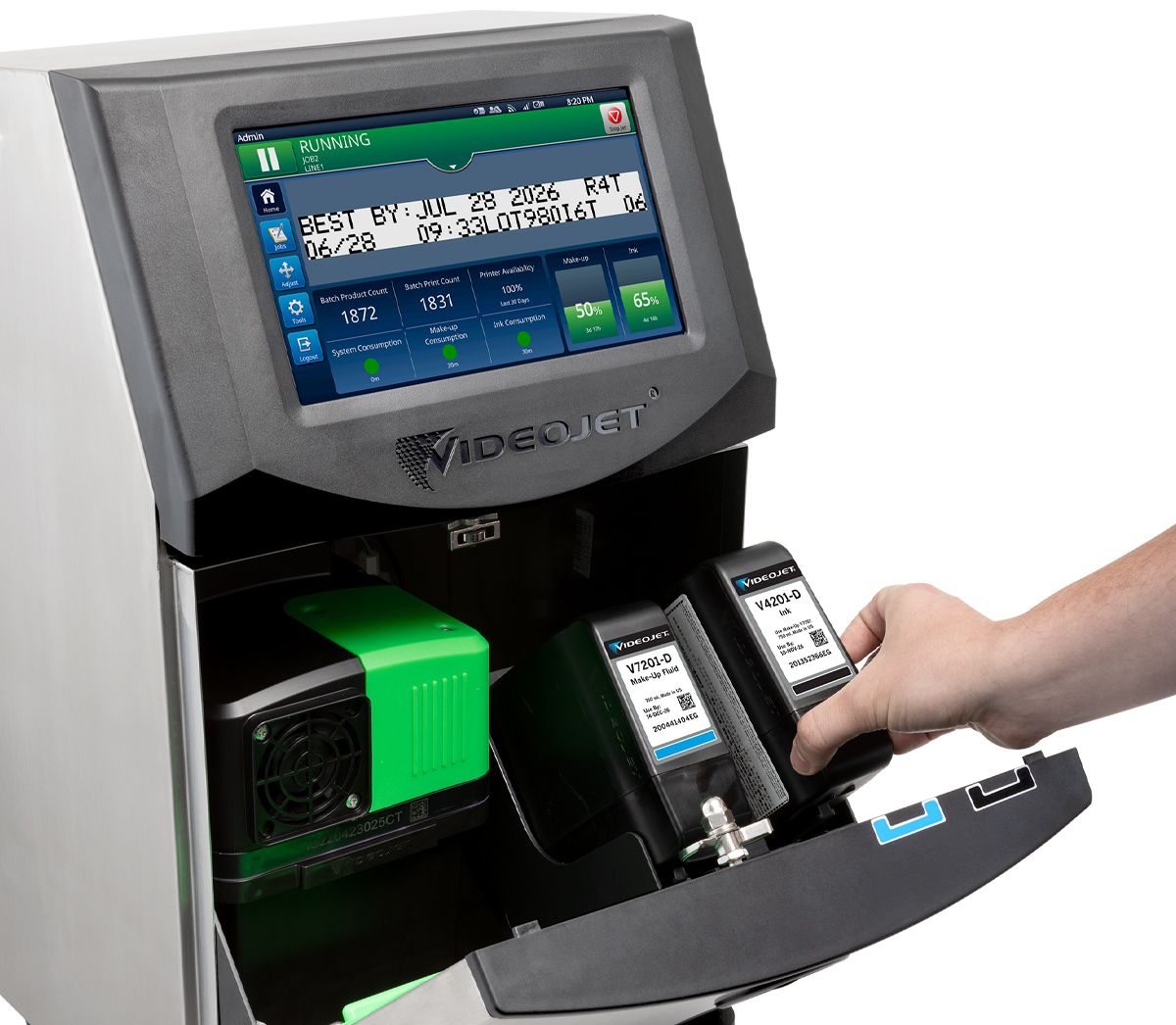

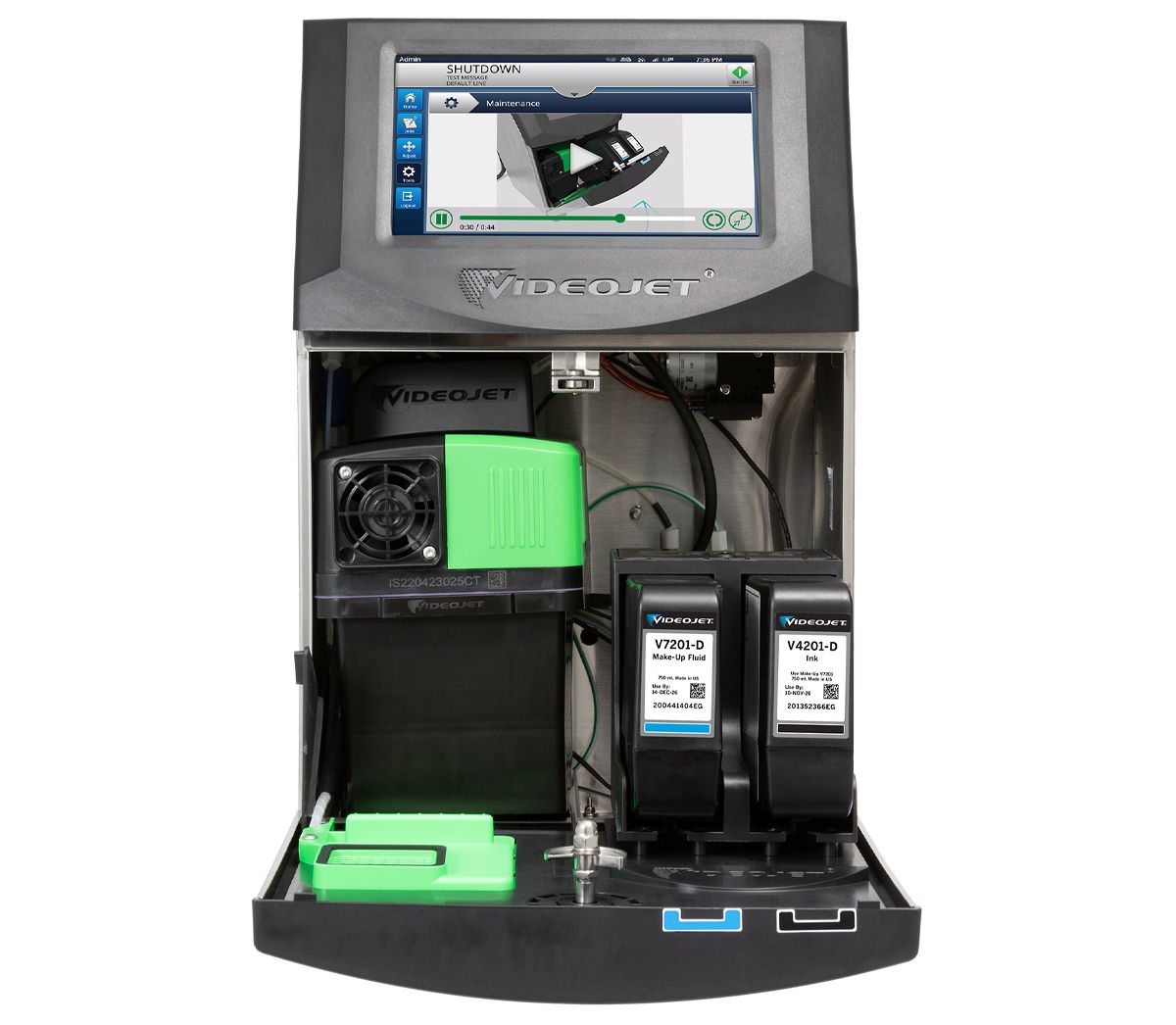

Ink and Make-up Smart Cartridge™ 1.06 qt (1000ml); optional 0.793 qt (750ml)
41°F to 113°F (5°C to 45°C)
0% to 90% RH non-condensing
With selected inks; actual installation may require additional hardware based on production environment conditions
Nominal supply power 100-120 / 200-240 VAC at 50/60 Hz., 70W
Unpacked and dry: 46.3lbs. (21kg)
Dust protection kit with CleanFlow™ technology
Dry air kit for high humidity (requires plant air)
Cellular communication
RS232 connector kit (USB to Serial DIN-5 male adapter)
SIMPLICiTY™ Workflow Modules
Wide range of accessories
