The 6530 and 6330 are part of the Videojet DataFlex® range of Thermal Transfer Overprinters (TTO), which are designed to give you a more productive operation. These new Videojet printers embody the latest technology to further improve uptime while reducing time spent on quality checks, waste, and rework to drive productivity, quality and efficiency.
With built-in code quality checker iAssure™ technology, minimal wear parts, airless all-electronic operation, and fast-change ribbon cassette, the 6530 and 6330 offer maximized uptime advantage.

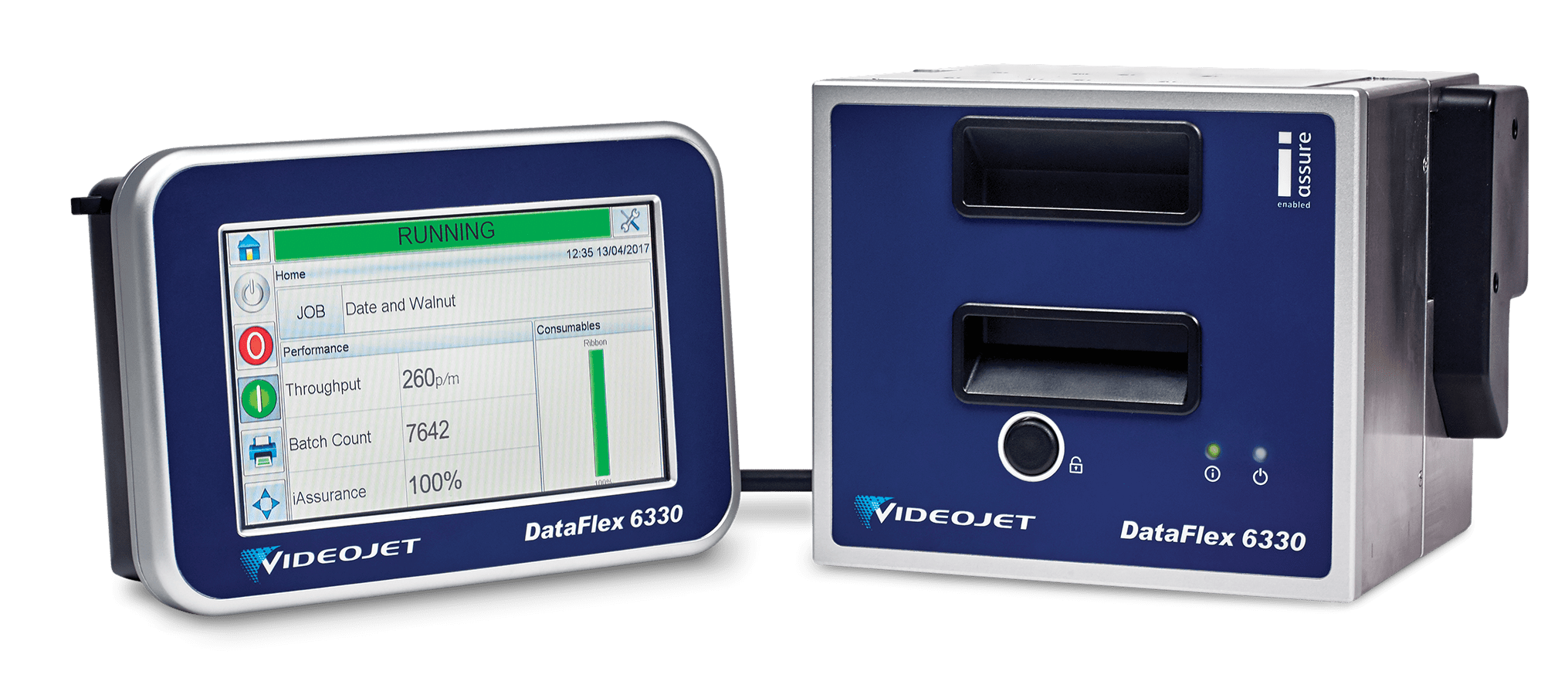

The DataFlex 6330 is a medium speed Thermal Transfer Overprinter and offers print speeds of up to 250 ppm*. It is available in two print widths, 32mm and 53mm, providing the best combination of printhead and ribbon width to deliver the most cost-effective solution for your application requirements.

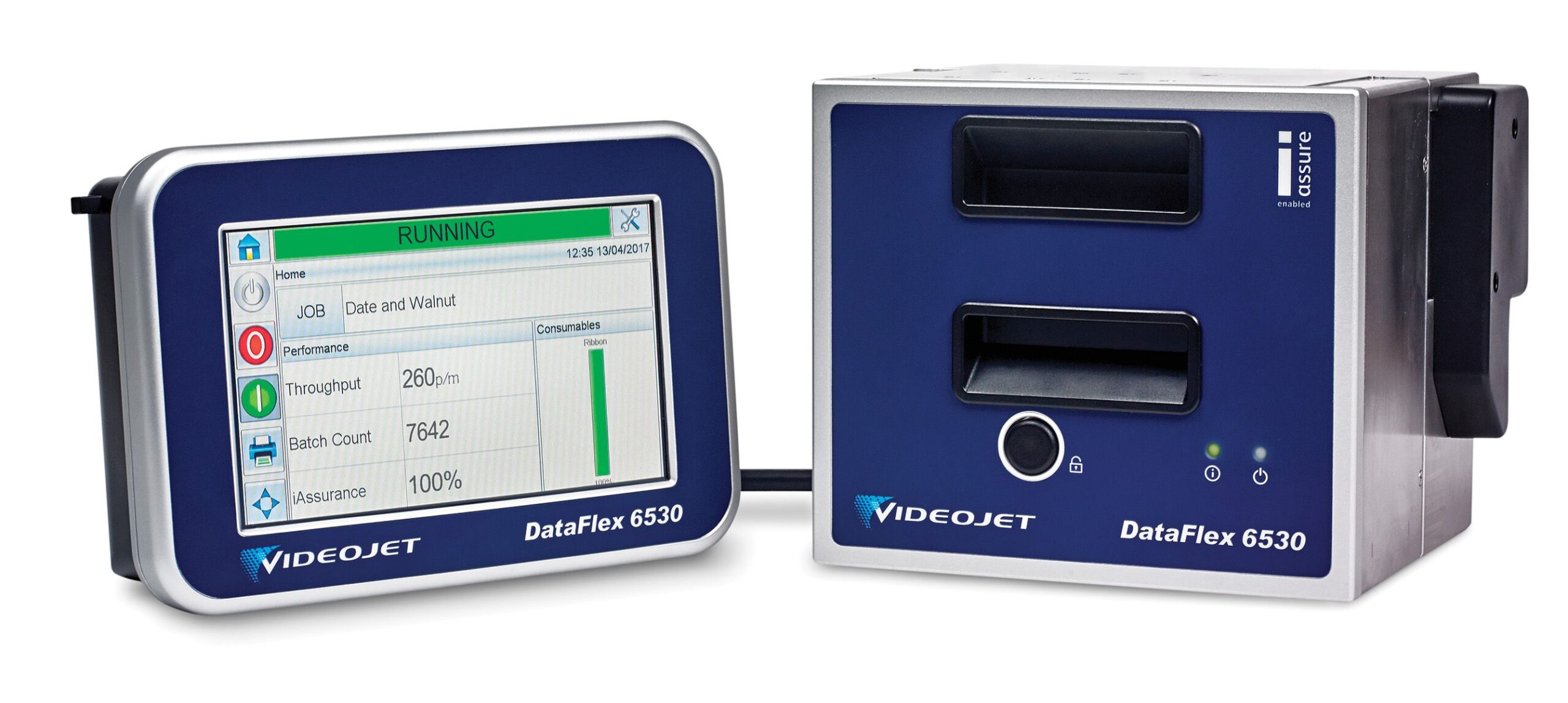

The DataFlex 6530 is a high-speed Thermal Transfer Overprinter that can help improve uptime and provide a more productive operation by helping to reduce time spent on quality checks, waste, and rework. It is also available in two widths, 53mm with iAssure™ technology, and an industry first airless 107mm, to meet your specific application needs.
Engineered for applications such as vertical form fill and seal, the 6530 offers print speeds of up to 1000mm/s and throughputs up to 700 ppm.*
*Application and substrate dependent
Contact us for New Equipment Sales:
1300 02 02 04
| Specification | 6530 | 6330 |
|---|---|---|
| Printer Mode | Intermittent and Continuous Motion | Intermittent and Continuous Motion |
| Print Gap | Consistent 0.020″ (0.5mm) | Consistent 0.020″ (0.5mm) |
| Ribbon Widths | 6530 (53mm): 0.8” (20mm), 2.2” (55mm) max 6530 (107mm): 2.2” (55mm), 4.33” (110mm) max |
6330 (32mm): 0.8” (20mm), 1.3” (33mm) max 6330 (53mm): 0.8” (20mm), 2.2” (55mm) max |
| Bar Code Printing | EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes); others may be available upon request | EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes); others may be available upon request |
| Operator Interface | TFT SVGA 800×480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password protection, extensive language support | TFT SVGA 800×480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password protection, extensive language support |
| Leader/Follower Capability (Up to 4 Printers Controlled by One User Interface) | Up to four Videojet DataFlex® 6530 printers controlled via a single CLARiTY™ control unit | Up to four Videojet DataFlex® 6330 printers controlled via a single CLARiTY™ control unit |
| Standard Communication | RS232, dual Ethernet, USB memory stick and scanner support, Binary and ASCII comms protocols, Windows™ drivers ZPL and SATO emulations | RS232, dual Ethernet, USB memory stick and scanner support, Binary and ASCII comms protocols, Windows drivers ZPL and SATO emulations |
| Web Browser Capability | Yes | Yes |
| Continuous Mode: | – | – |
| Maximum Print Area (Width x Length) |
6530(53mm): 2.1” (53mm) wide x 11.8” (300mm) long 6530 (107mm): 4.3” (107mm) wide x 11.8” (300mm) long |
6330 (32mm): 1.3” (32mm) wide x 7.9” (200mm) long 6330 (53mm): 2.1” (53mm) wide x 7.9” (200mm) long |
| Maximum Print Speed | 39.4 in./sec (1,000mm/sec) | 29.5 in./sec (750mm/sec) |
| Minimum Print Speed | 0.04 in./sec (1mm/sec) | 0.04 in./sec (1mm/sec) |
| Estimated Maximum Throughput (Single Line Code) | 6530 (53mm): Up to 700 prints per minute 6530 (107mm): Up to 450 prints per minute |
6330 (32mm): Up to 250 prints per minute 6330 (53mm): Up to 250 prints per minute |
| Intermittent Mode: | – | – |
| Maximum Print Area (Width x Length) |
6530 (53mm): 2.1” (53mm) wide x 2.95” (75mm) long 6530 (107mm): 4.3” (107mm) wide x 2.95” (75mm) long |
6330 (32mm): 1.3” (32mm) wide x 2.95” (75mm) long 6330 (53mm): 2.1” (53mm) wide x 2.95” (75mm) long |
| Maximum Print Speed | 6530 (53mm): 31.5 in./sec (800mm/sec) 6530 (107mm): 23.6in./sec (600mm/sec) |
6330 (32mm): 29.5 in./sec (750mm/sec) 6330 (53mm): 29.5 in./sec (750mm/sec) |
| Minimum Print Speed | 0.4 in./sec (10mm/sec) | 1.6 in./sec (40mm/sec) full print quality; 0.4 in./ sec (10mm/sec) draft mode print quality |
* iAssure not available in 107mm printhead width
* iAssureTM technology complements existing quality control processes. It is not designed to detect all printing errors and does not read bar codes.
“The screen on the previous thermal transfer printers we were using wasn’t easy to work with. Now all I have to do to change the code is tap the touch screen, create the price and then the expiration date. It takes only a minute.”
Steve Sneeringer – Machine Operator, Utz Quality Foods (case study)
“Videojet is rightly in a market-leading position with this device.”
Stefan Hertel Senior Project Manager, Zeppelin Systems (case study)
“That was one of the reasons why we decided on Videojet – because we need totally reliable printing including a very reliable printer with an extremely low failure rate.”
Stefan Hertel, Senior Project Manager, Zeppelin Systems (case study)
53mm or 107mm, 300dpi (12dot/mm)
53mm intermittent printing mode: 2.1” (53mm) wide x 3.0” (75mm) long
53mm continuous printing mode: 2.1” (53mm) wide x 11.8” (300mm) long
107mm intermittent printing mode: 4.3” (107mm) wide x 3.0” (75mm) long
107mm continuous printing mode: 4.3” (107mm) wide x 11.8” (300mm) long
Intermittent mode: 0.4 in./sec (10mm/sec)
Continuous mode: 0.04 in./sec (1mm/sec)
53mm intermittent printing mode: 31.5 in/sec (800mm/sec)
107mm intermittent printing mode: 23.6 in/sec (600mm/sec)
Continuous mode: 39.4 in./sec (1,000mm/sec)
53mm normal print mode: Up to 500 prints per minute
53mm high throughput mode: Up to 700 prints per minute
107mm normal print mode: Up to 450 prints per minute
Full downloadable font support using TrueType® fonts (including multiple languages and Unicode support); fixed, variable and merged text fields; flexible date/time formats; flexible shift code formats; auto best before date calculations and concession management; calendar rules; auto incrementing decrementing text, counters and bar codes; multiple graphic formats supported (up to maximum print area); link fields to databases; scalable text and text blocks
EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes), DataMatrix, QR; others available upon request

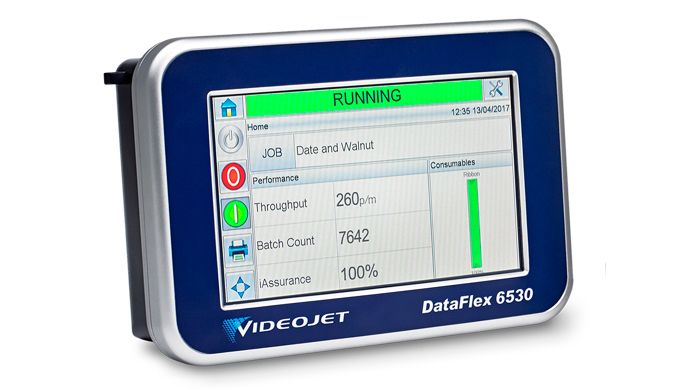

TFT SVGA 800×480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password protection, extensive language support
Full assortment of wax/resin and resin ribbons
Lengths up to 1,200 meters available, dependent on ribbon composition and color
53mm: 0.8” (20mm) min, 2.2” (55mm) max
107mm: 2.2” (55mm), 4.33” (110mm) max
0.02” (0.5mm)
Radial, interleaved, intermittent stripes
Videojet CLARiSOFTTM, CLARiSUITE® or VideojetConnectTM Design Template
CLARiNETTM
CLARiTYTM Configuration Manager
“Off-line” set up and parameter storage available as standard
Up to four Videojet DataFlex® 6530 printers controlled via a single CLARiTY control unit
Control Videojet DataFlex® 6530 units remotely through the host packaging machine interface
RS232, dual Ethernet, USB memory stick and scanner support, Binary and ASCII comms protocols, Windows® drivers, ZPL and SATO emulations
3 PNP inputs
2 relay outputs and 2 PNP +24V outputs
100-240VAC
0-40°C (32-104°F)2

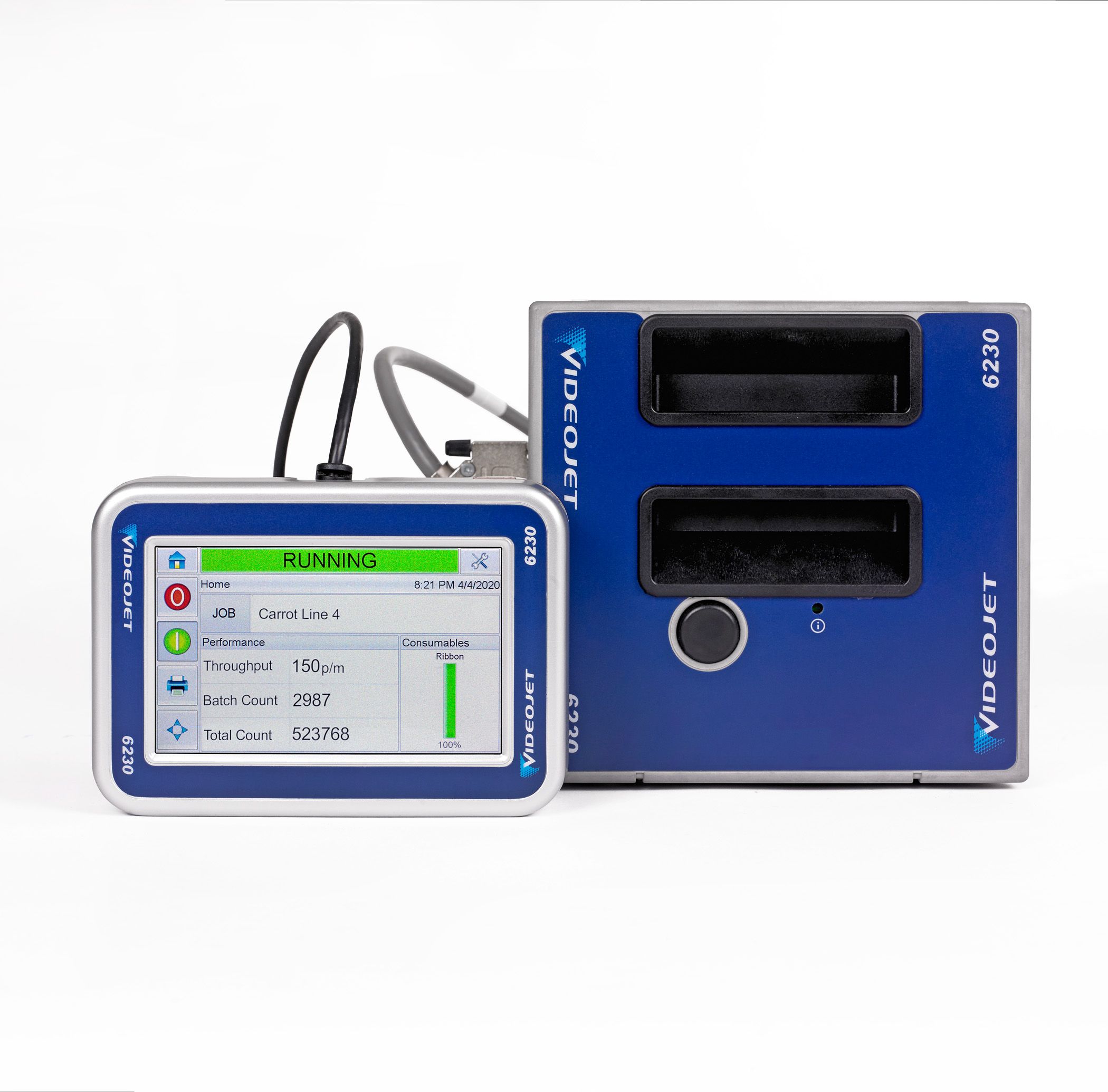

Cost-effective TTO printer that provides high-quality codes on flexible film at speeds up to 150 packs per minute.
