Videojet 8520

Simple Operation Allows You to Focus on Production, Not the Printer:

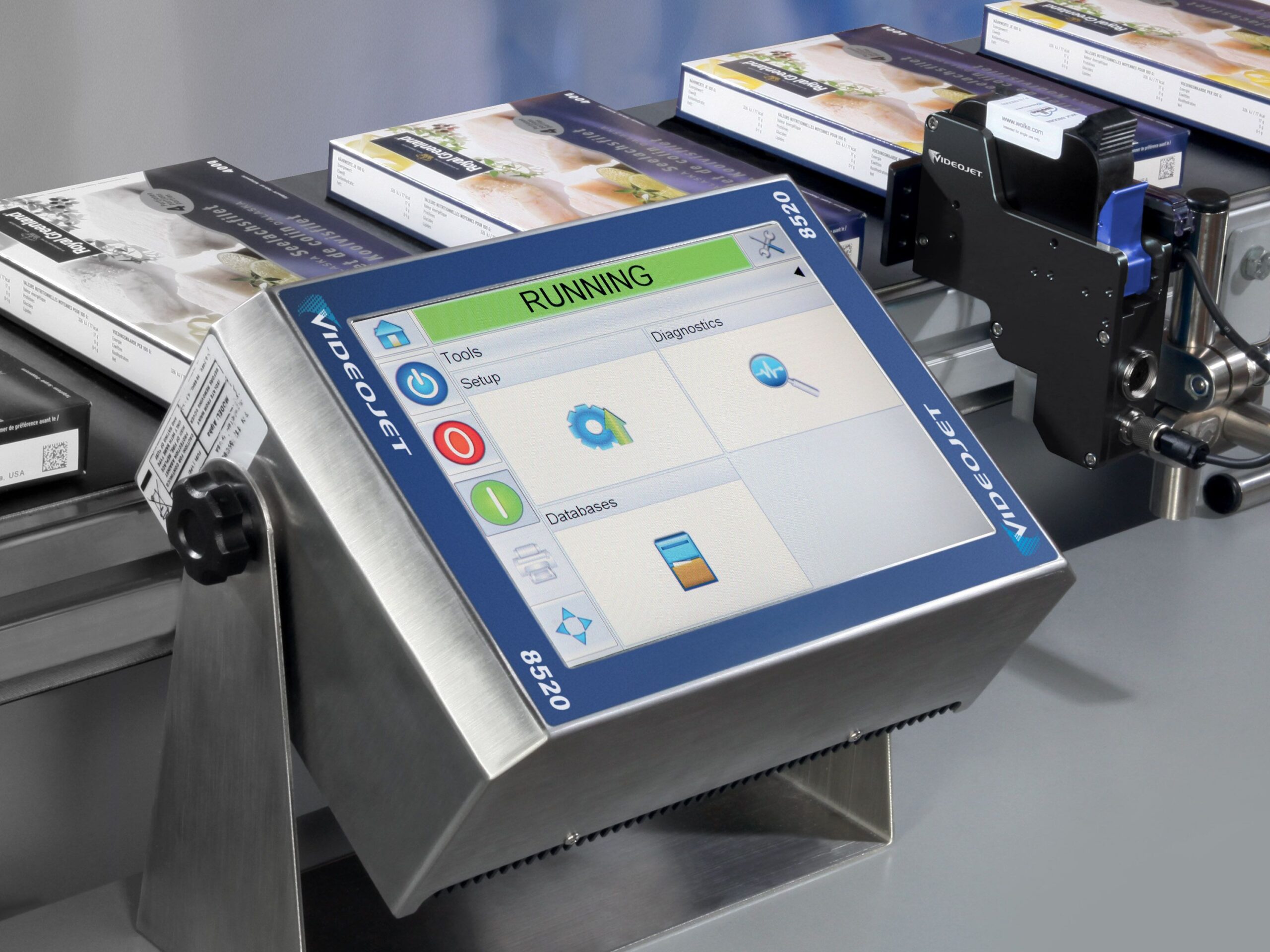

• The 8.4 inch color touchscreen interface with easy to learn, icon based, controls
• Clean operation with genuine HP cartridges, virtually eliminating spills and mess
• Simple code selection and customer selectable rules prevent human error; all common functions accessed in five or fewer touches

Uptime Advantage Saves Money:

• No wear items or replacement parts outside of inkjet cartridge replacement
• Simple cartridge changes can occur in less than one minute, with no specialized training

High Speed, High Resolution Printing:

• Print 600 x 600 dpi high resolution codes up to 50.8 mm (2 in) in height

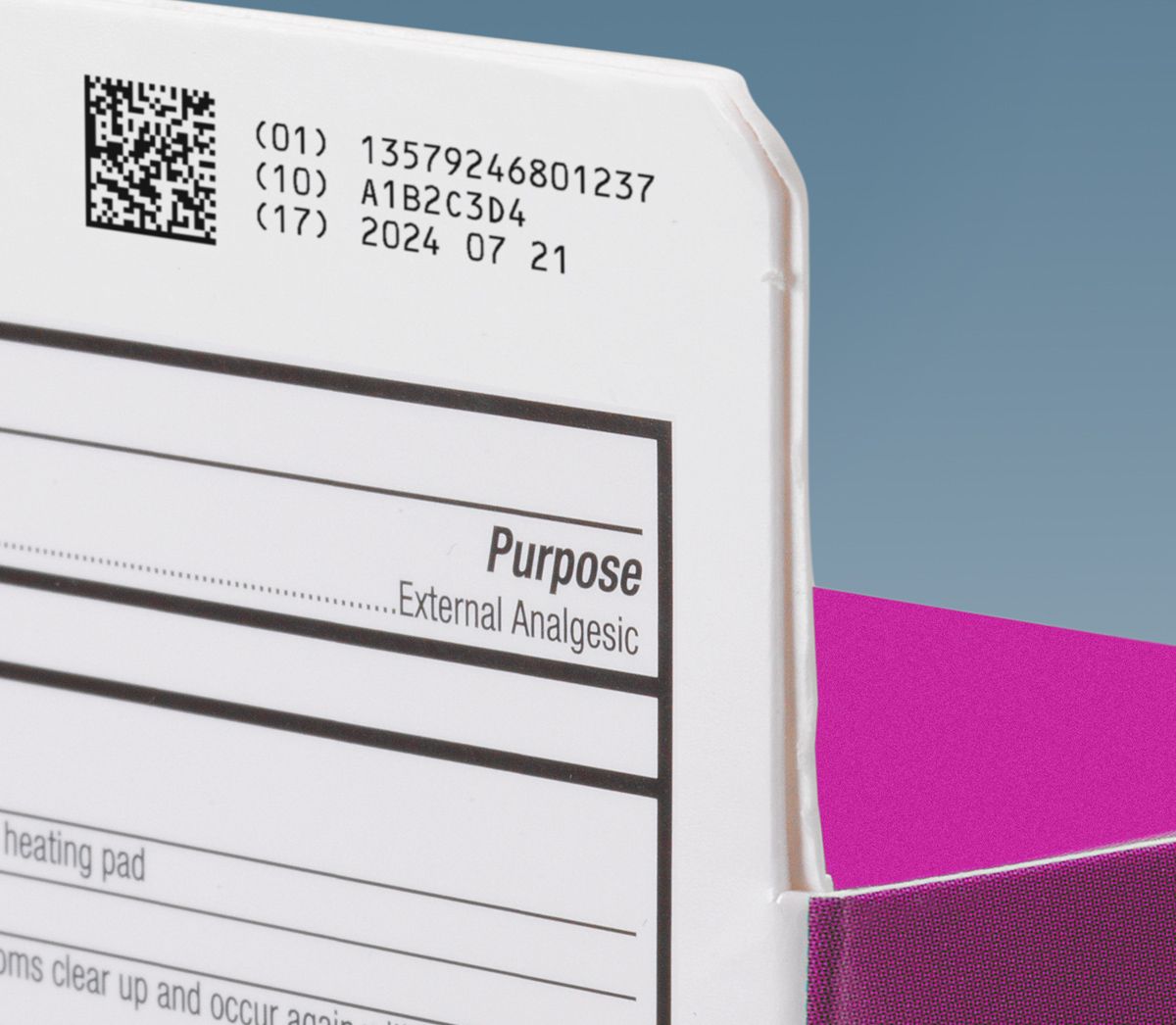

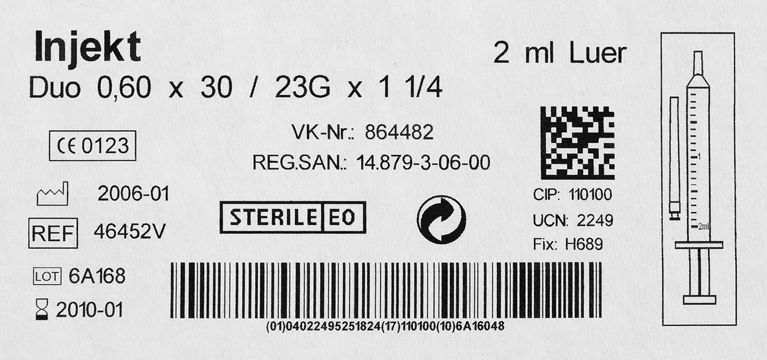

• Wide range of bar codes including DataMatrix and stacked symbologies
• Maximum line speed of up to 75 m/min (250 ft/min) when printing at exceptional print quality of 600 x 240 dpi (faster speeds available at lower print speeds)

Ideal for Packaging Line Integration; Scalable for Your Operations:

• The small footprint and industrial design is easy to integrate into existing production lines
• Integrate printer via webserver functionality for remote control from third party HMI displays
• Data interfaces include TCP/IP, RS232, USB, ZPL and Text communication
• Advanced communication protocol for remote operation and high speed serialization. Printer supports both Text and Binary communication and offers select emulation of ZPL (Zebra Programming Language)

“We got exactly what we wanted: enhanced quality in coding our products with a long-term reduction of effort, cost and time!”

Günter Heimbuchner, Head of Logistics and Technical Purchasing at S. Spitz GmbH (case study)

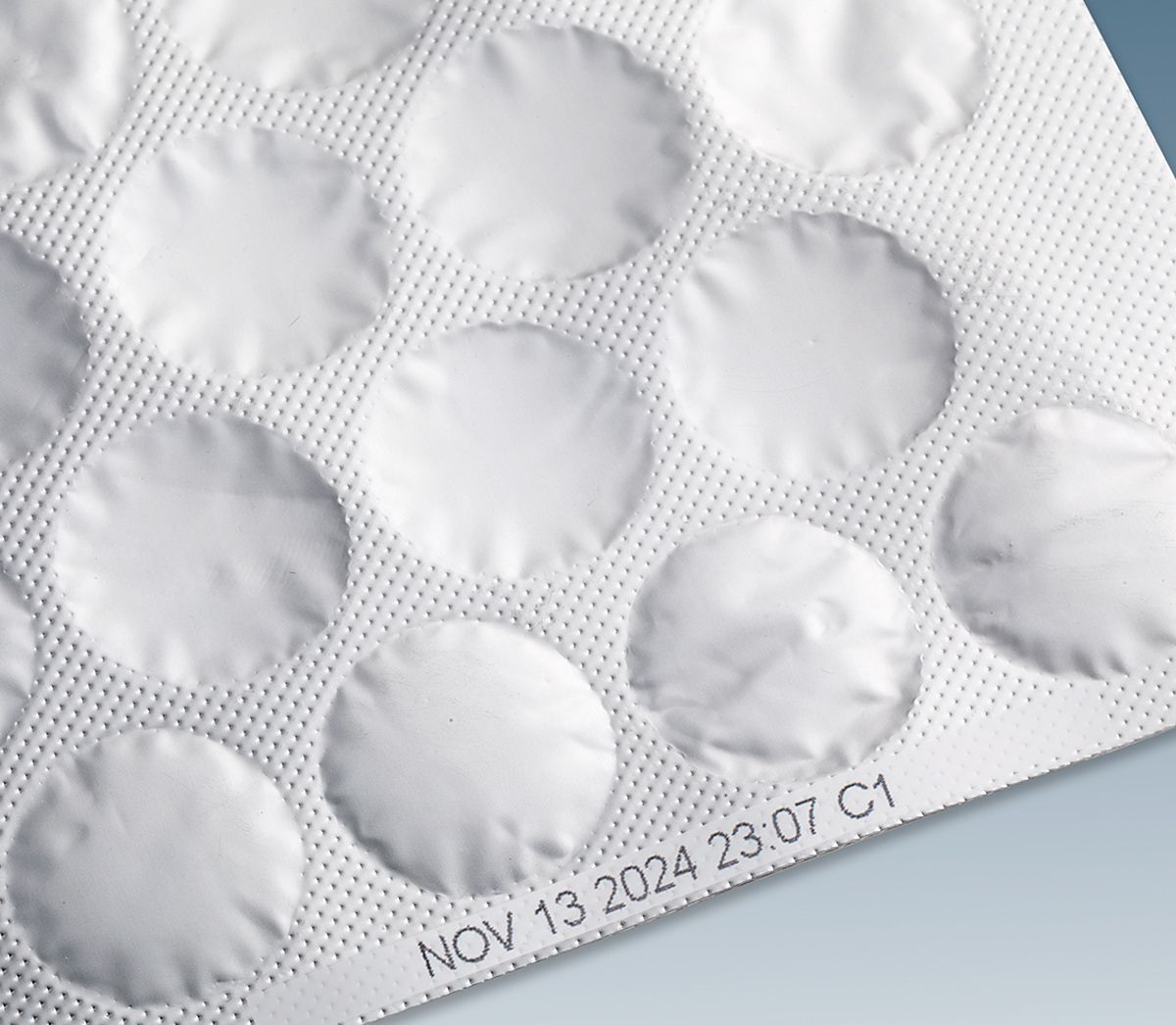

“The blister application is perfect for the m600 with Flex Solvent as the adhesion is superior to anything else comparable on the market and we’ve managed to achieve a much better contrast code for machine readability.”

Jake Barnes, Technical Sales Manager at Travtec Medreich PLC (case study)
