| Specification | Value |
|---|---|
| Print Speed | |
| Bar Code Printing | 0.6 – 66mpm (2.0 to 216ft/min.) |
| Alphanumeric Text | up to 132mpm (433ft/min.) Speeds are density dependent |
| Print Area (Height x Length) | 70 x 2000 mm (2.8 x 78 in) |

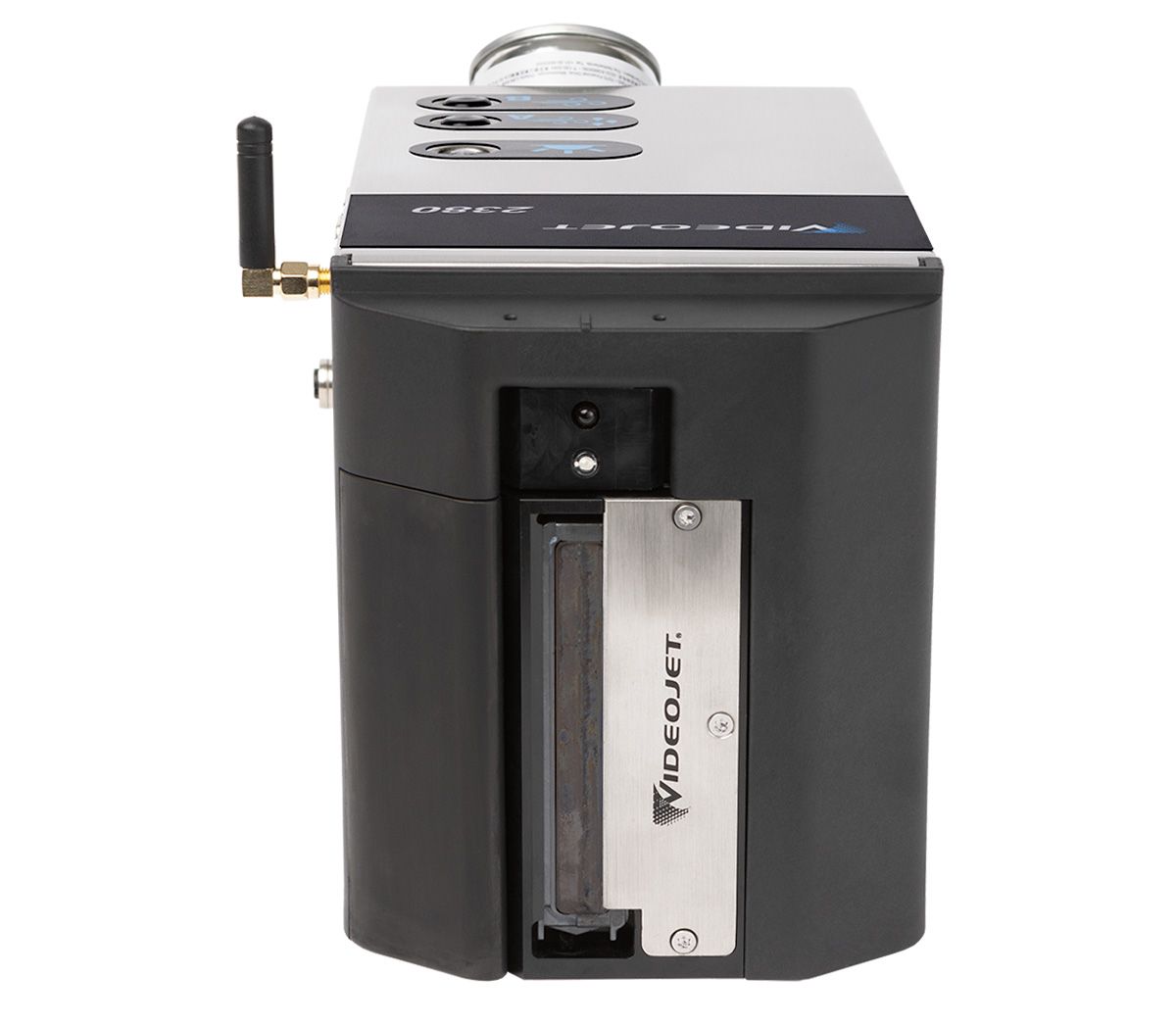

| Printheads | 70 mm (2.8 in) high 180 dpi |
| User Interface | 8″ high-response TFT-LCD touch screen |
| Connectivity options | RS232, dual Ethernet and Wi-Fi |
| On-Board Memory | 8 GB memory |
*Older job files may need testing to ensure successful upload.
*Videojet is not affiliated with any third-party company mentioned herein in reference to command languages, protocols, or software. Any statement of compatibility is made solely by Videojet and is not a representation of sponsorship or approval by any third party.
CoLOS® is a registered trademark of Markem-Imaje, a Dover Company.
Bar code printing – 0.6 – 66mpm (2.0 to 216ft/min.)
Alphanumeric text – up to 132mpm (433ft/min.)
Speeds are density dependent
0.5mm to 4.0mm max. (0.02 – 0.15”)
70mm (H) x 2000mm (L) (2.8” x 78”), 180 dpi
UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128; Code 39;
Interleaved 2 of 5; PDF417 and Micro PDF417
RSS/GS1 Databar (including 2D composite codes); DataMatrix; QR codes

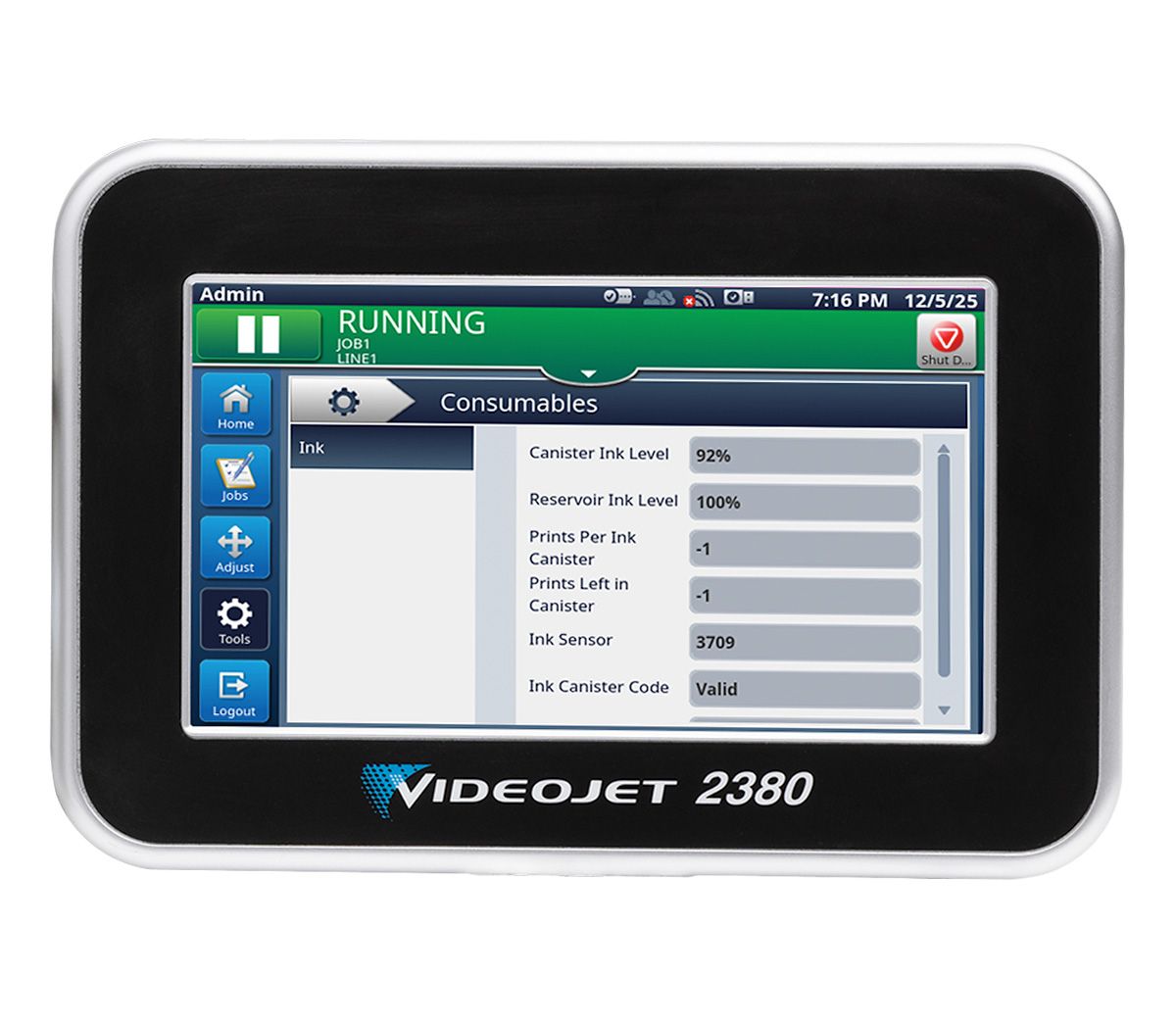

8″ high-response TFT-LCD touch screen
WYSIWYG touch to edit message editing
On-board diagnostics
Can be created via optional CLARiSOFTTM software
Full downloadable font support using TrueType® fonts (including multiple languages and Unicode support); fixed, variable and merged text fields; flexible date/time formats; flexible shift code formats; auto best before date calculations and concession management; calendar rules; auto incrementing decrementing text, counters and bar codes; multiple graphic formats supported (up to maximum print area); link fields to databases; scalable text and text blocks
English, Arabic, Bulgarian, Chinese (Mandarin), Czech, Danish, Dutch, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Thai, Turkish and Vietnamese
8 GB memory
1 product detect input, 1 DB15 interface integrated shaft encoder input, job select inputs, 24VDC output, 3 configurable inputs, and outputs for driving relay control or beacon
1 DB9 interface for sharing product detect and encoder signal between printers
1 USB 2.0 host
Fixed, variable (user entered), merged, database, counters, date, offsets, time,
paragraph (Text Blocks)
Basic shape drawing (circles, rectangles etc.)
Binary and ASCII comms protocols
Host PC mode (Remote Database) using CLARiNETTM
Zebra (ZPL) protocol
USB connectivity for job download and software update
RS232, dual Ethernet and Wi-Fi

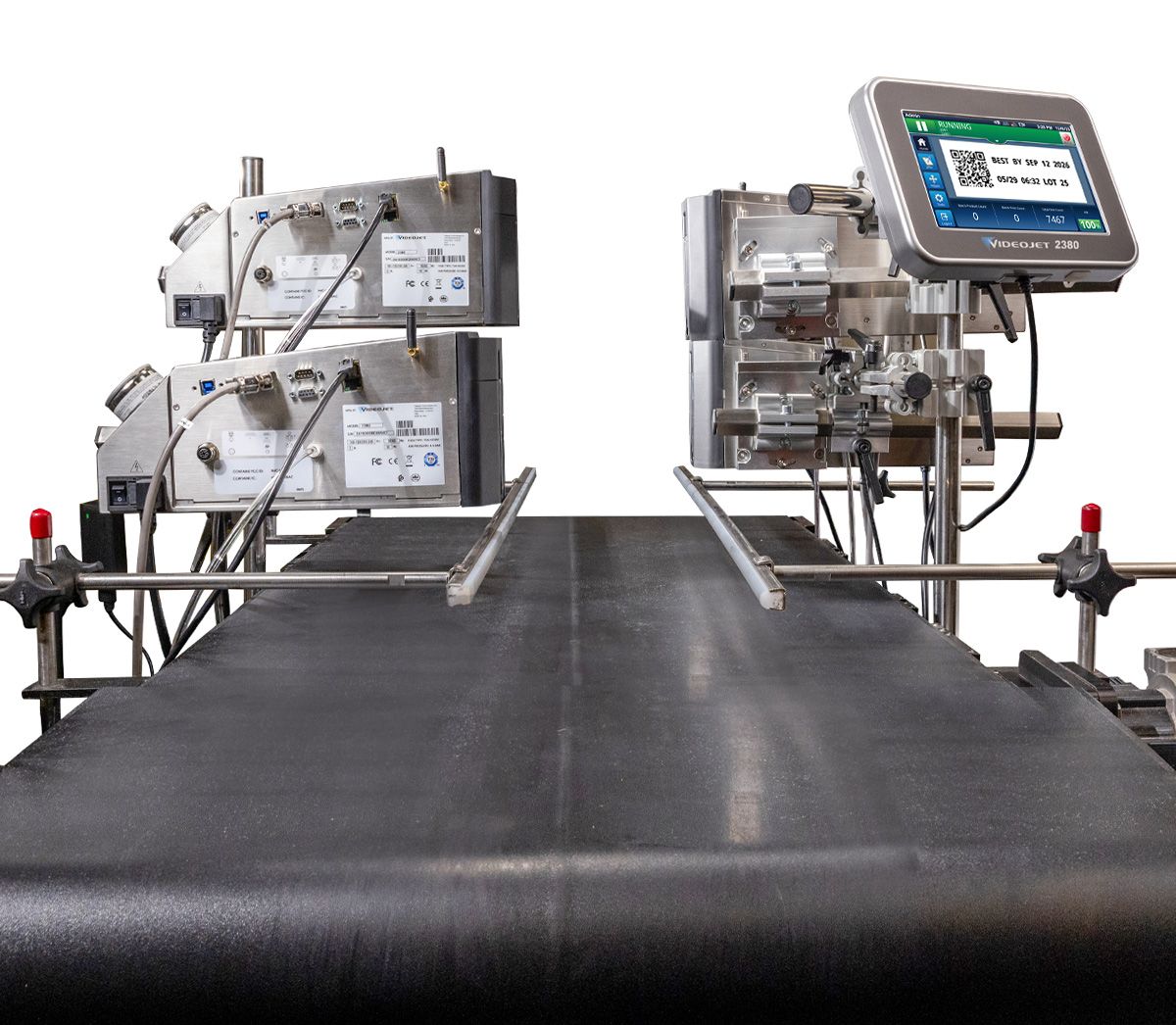

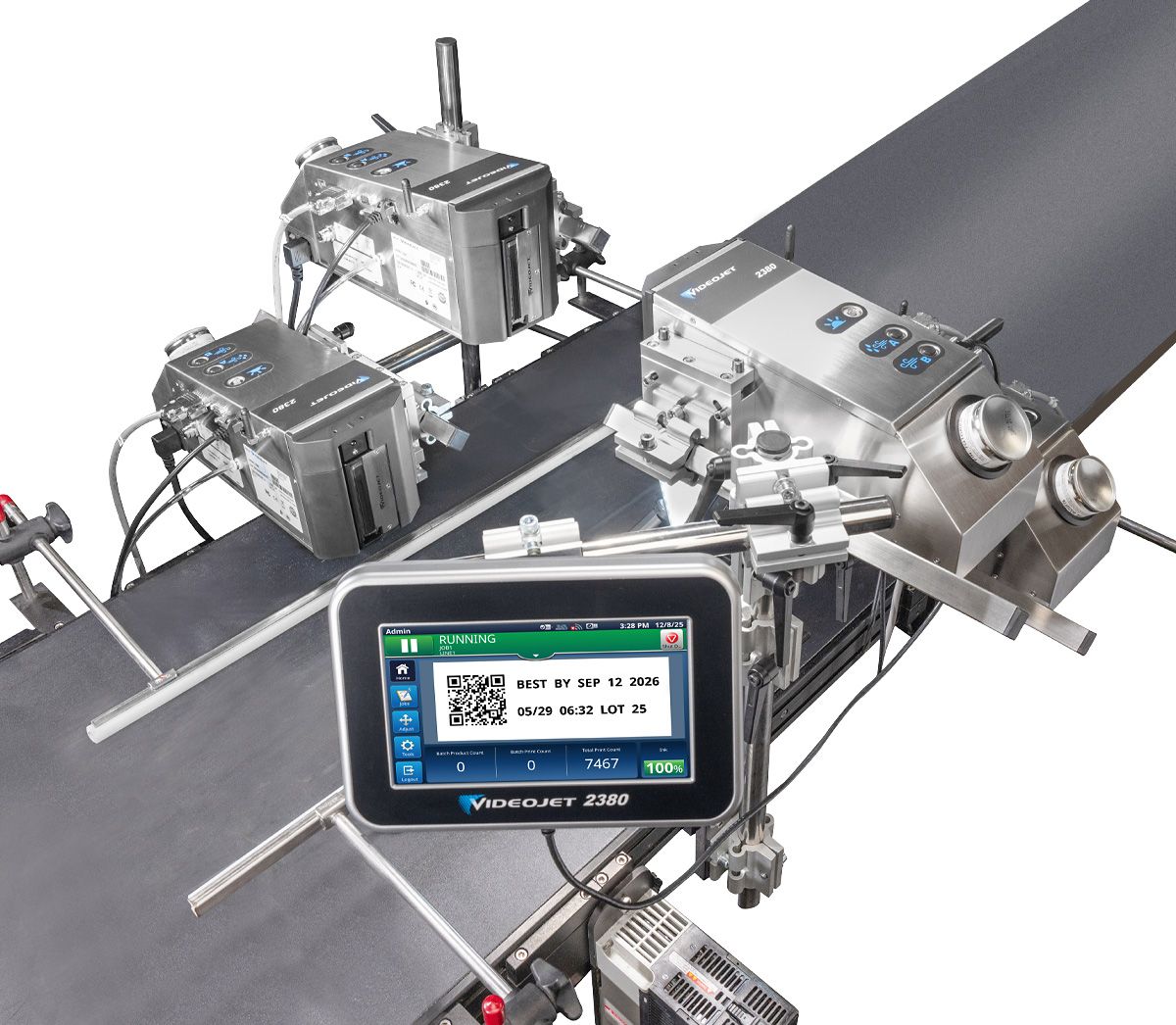

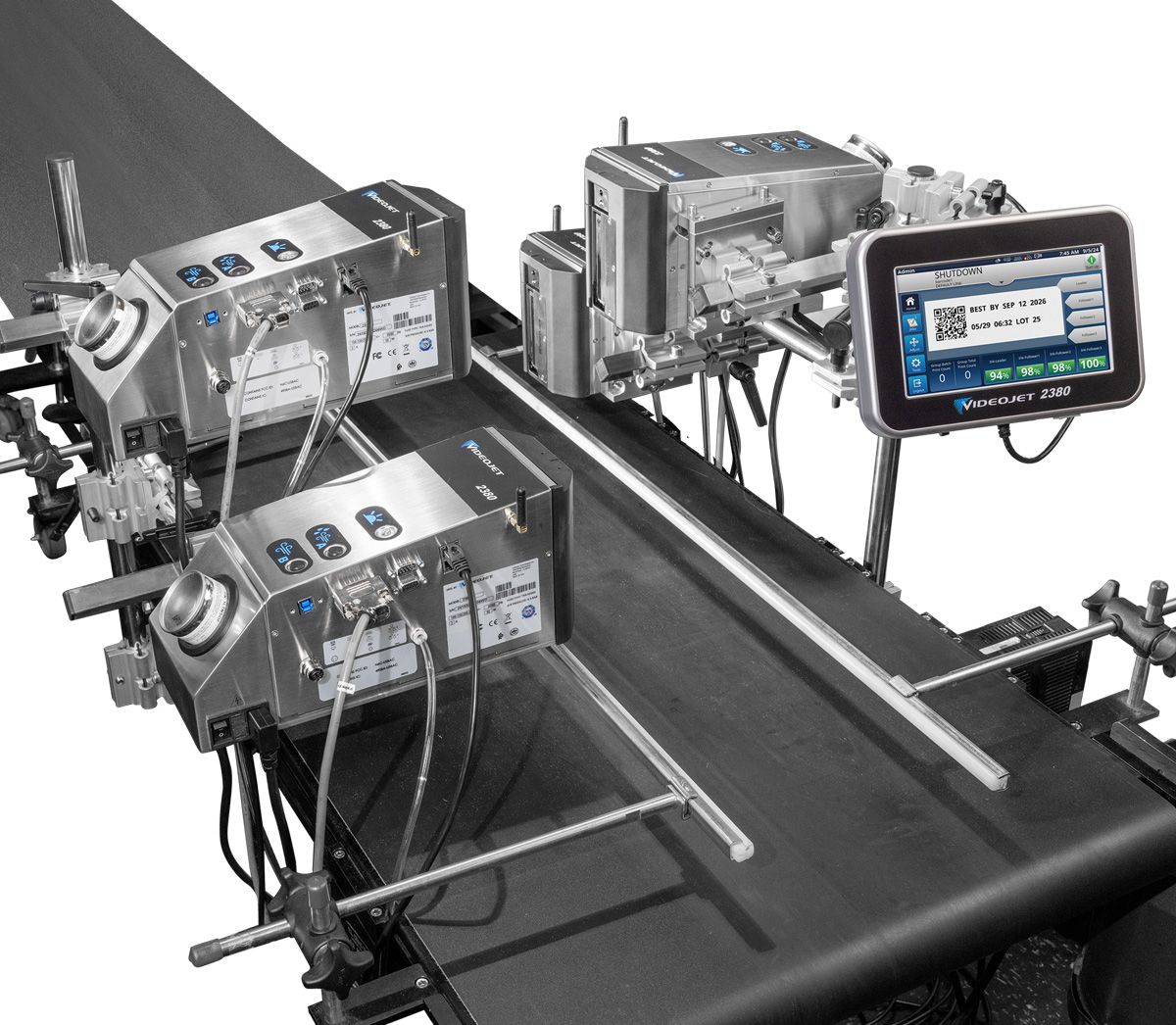

Single printhead in standard mode, two printheads in leader/follower mode ; three and four printheads in leader/follower mode with a junction box
CLARiNETTM network management software
Compatible with Markem Imaje® CoLOS® software and solutions

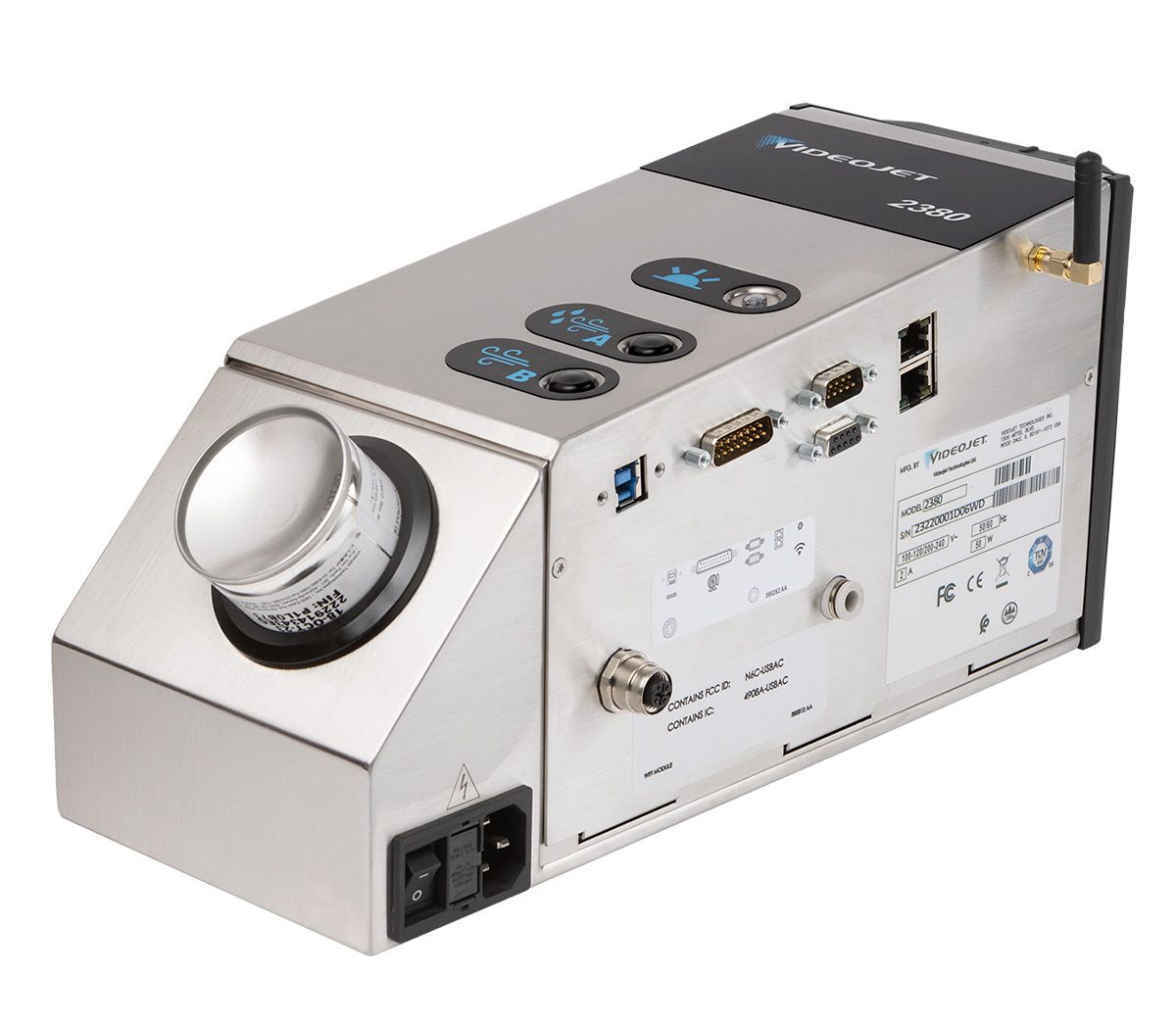

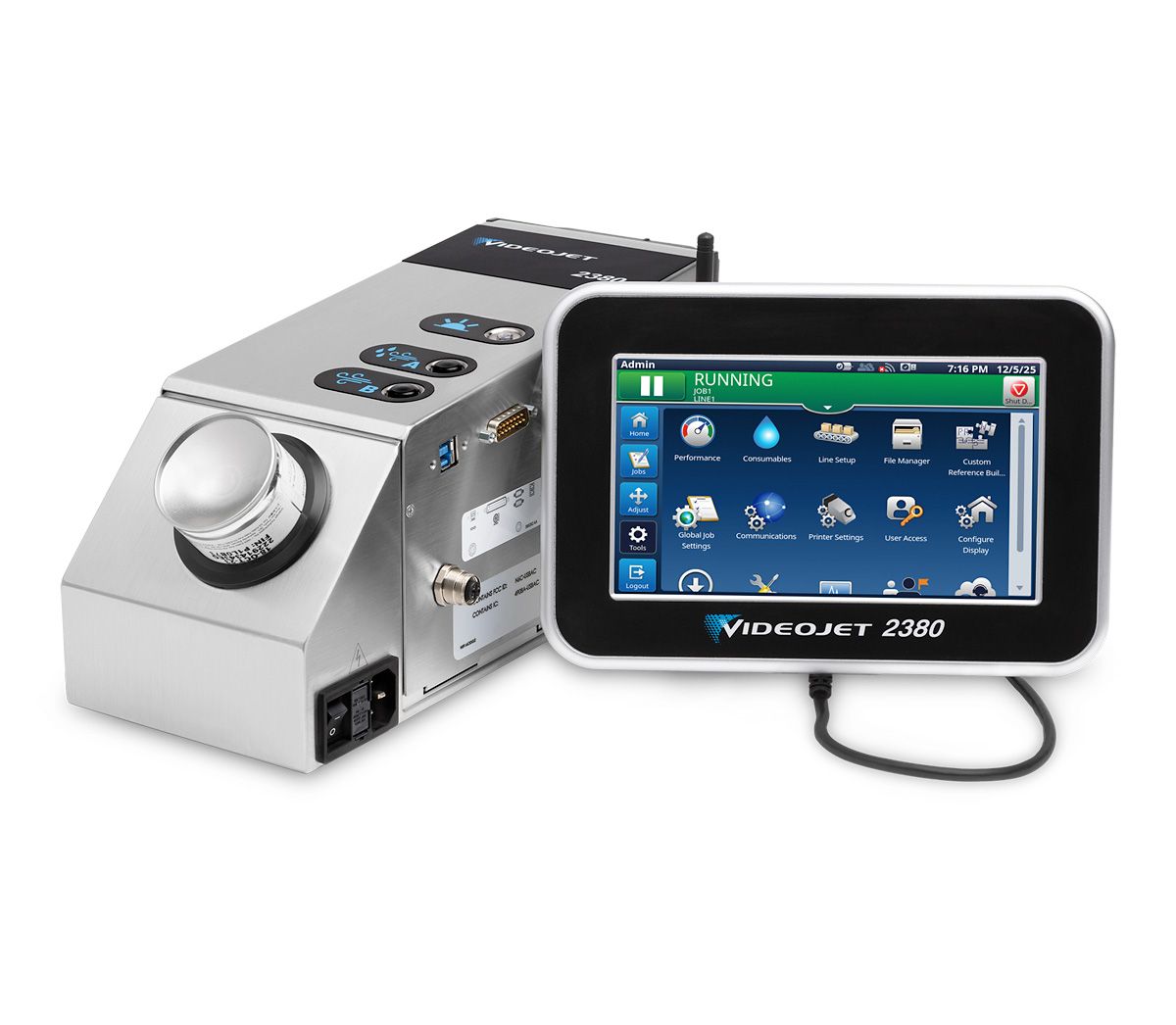

Non-pressurized, screw-in canister; 175ml or 365ml
Colors available: black, blue, green, orange, purple, red, yellow
100V-240VAC, 50/60HZ, 50W
6 Bar, 90psi, dry, uncontaminated
10°-35° C (50°-95° F)
Unboxed: 3.75kg (8.3lbs); Boxed: 7.4kg (16.3lbs) (single head)
SIMPLCiTY Workflow Modules
Wide range of accessories
One or two lines of basic alphanumeric text is a breeze with these reliable, efficient, and compact valve-jet printers.
