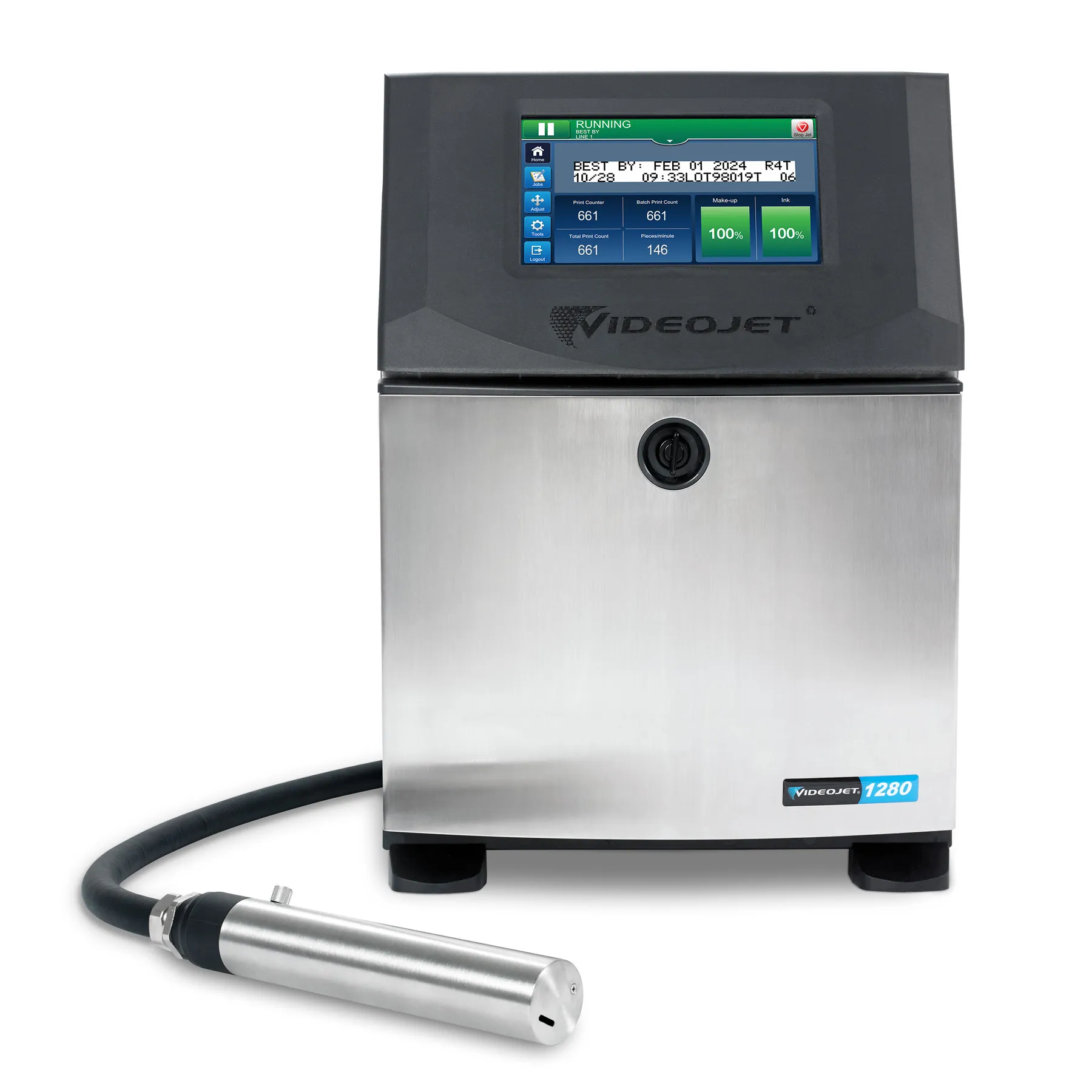

Videojet has redefined simple with the Videojet 1280 Continuous Inkjet (CIJ) Printer. From the intuitive interface to smart design features, the 1280 CIJ printer is simple for all operators to use.
The 1280 CIJ printer features an 8” tablet-inspired SIMPLICiTY™ interface, greatly reducing operator printer interactions, and helping to eliminate potential user errors.
One, quick and easy-to-replace Videojet SmartCell™ service module helps to ensure you receive maximum line productivity and no additional downtime.

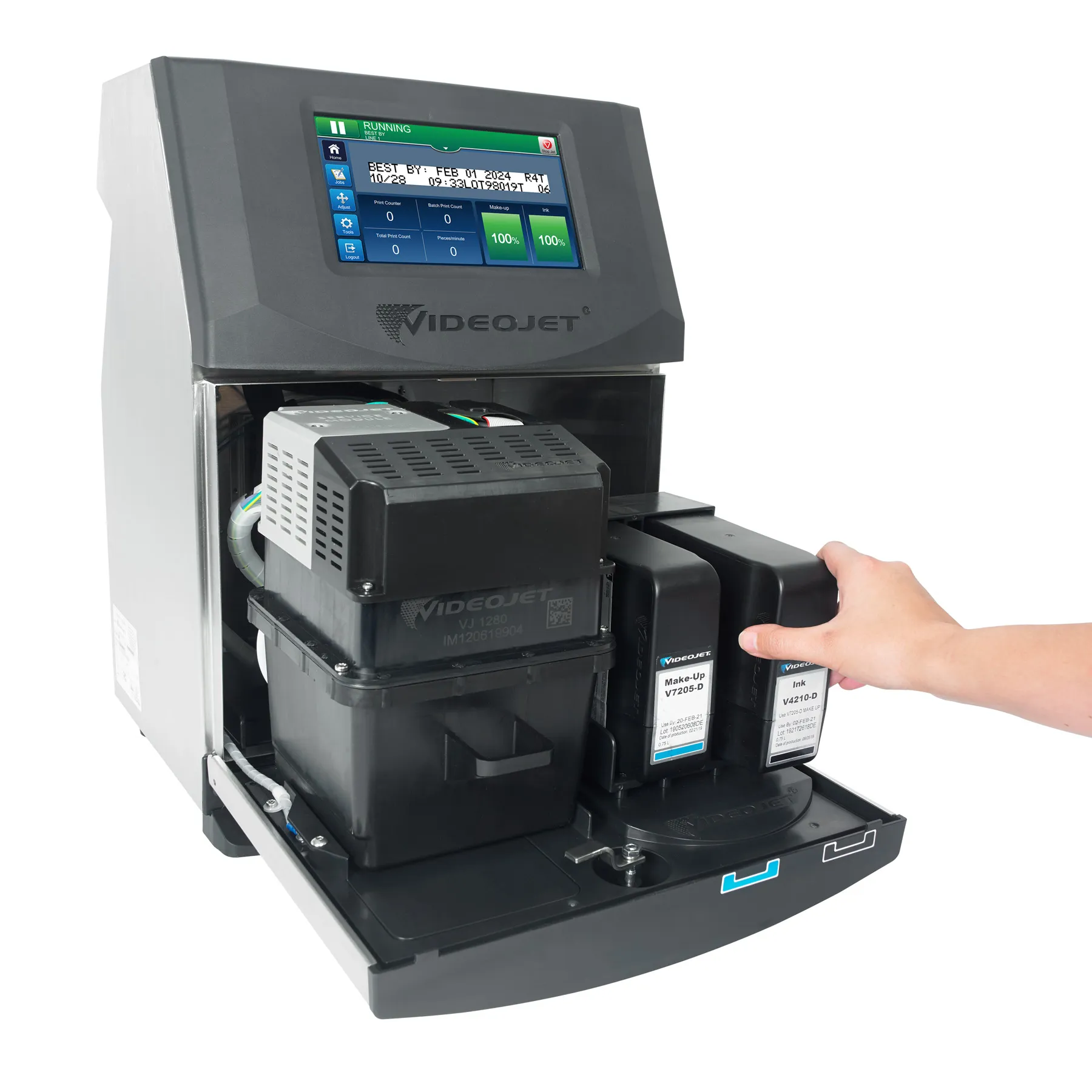

Our no mess, no waste, no mistake Videojet Smart Cartridge™ system drains all fluids from the cartridge, and offers additional protection against leakage during transport and handling.
With optional VideojetConnect™ Remote Service, your team can gain instant access to the world’s largest network of CIJ experts, connecting the Videojet technician directly to your production line for immediate assistance.
Contact us for New Equipment Sales:
1300 02 02 04
| Specification | Value |
|---|---|
| Printheads | 1 |
| Inks | Dye Based |
| Maximum Lines of Print per Printhead | 5 |
| Maximum Line Speed (1) | 162 m/min (533 ft/min) |
| Environmental Protection | IP55 |
| Umbilical Length | 2 m (6.56 ft) optional 3 m (9.84 ft) |
| Message Storage Capability | More than 250 complex messages |
| Smart Cartridge™ | Included |
| SmartCell™ | Included |
| Communications | Ethernet LAN and RS232 Serial (requires RS232 connector kit) |
| Linear and 2D Bar Codes | Included |

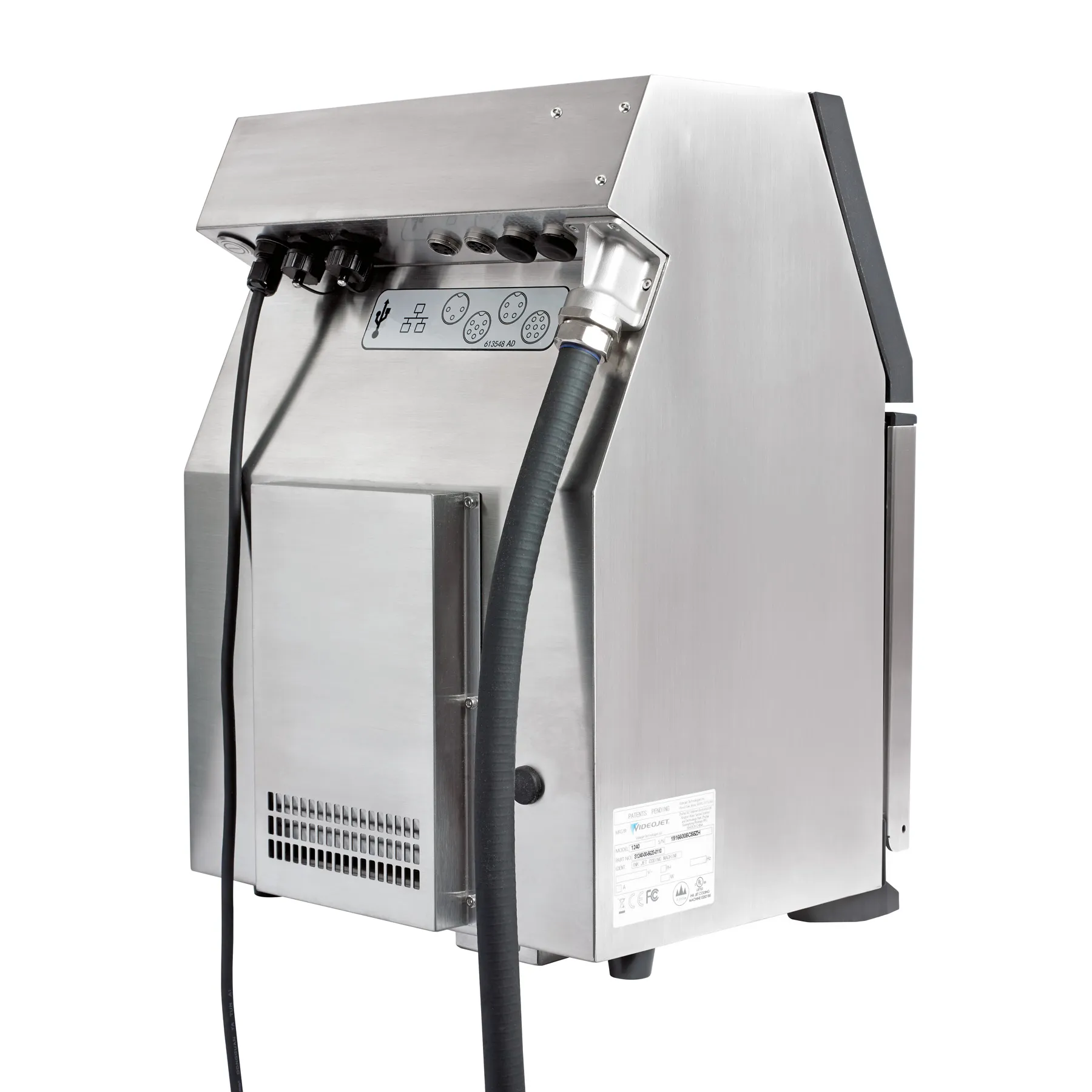

| I/O Ports and Control | Product Detect Input, Encoder Input, Beacon (Alarm light) Output, Relay Output, USB 2.0 (x2) |
| Display (User Interface) | SIMPLICiTY™ based 8 inch color touchscreen |
| Workflow Modules | Extended Speed Workflow Module, Scan2Print |
| Positive Air / Dry Air Kit | # |
“Videojet inkjet technology has revolutionized what used to be a very dirty job. It is the best equipment on the market. Coding can be that easy.”
James Macsween – Managing Director, Macsween of Edinburgh (case study)
“It’s just very simple. Since the printhead stays clean, we don’t need to spend any time cleaning it.”
Josh Biederwolf – Extruder Operator, Bell Laboratories (case study)
“The printers work in the background which is good news. I never really hear about any problems from them. They offer the reliability factor that I need without any headaches. They do exactly what you want them to do which is what you want from an engineering and production perspective.”
Neil Hackney – Group Engineering Manager, Bokomo Foods (case study)
Can print 1 to 5 lines of print at speeds of up to 533fpm (162mm)
(10 characters per inch, single line of print)
Single-line: 5×5, 5×7, 5×7 Tower, 7×9, 9×12, 10×16, 16×24, 25×34
Twin-line: 5×5, 5×7, 7×9, 9×12, 10×16
Tri-line: 5×5, 5×7, 7×9
Quad-line: 5×5, 5×7
Five-line: 5×5
UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128;
Code 39; Interleaved 2 of 5; GS1
21×21, 25×25, 29×29, 33×33
Error correction mode L, M, Q or H
Square Form up to 32×32; Rectangular Form up to 16×48
Selectable from 0.079” (2mm) to 0.40” (10mm), depending on font
Optimal: 0.47” (12mm)
Range: 0.197” (5mm) to 0.591” (15mm)
8” high-response TFT-LCD touch screen
WYSIWYG touch to edit message editing
Can be created via optional CLARiSOFT™ software*
Chinese, Russian/Bulgarian, Turkish/Scandinavian, Romanian, Greek, Arabic, Japanese/Kanji, Faroese, Hebrew, Icelandic, Korean, East European, American/European and Vietnamese
English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Serbian, Slovenian, Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese
Product detect input
Encoder input
Beacon (Alarm light) output
Relay output
USB 2.0 (2x)
Ethernet LAN
More than 250 complex messages
IP55 standard, no plant air required, stainless steel cabinet

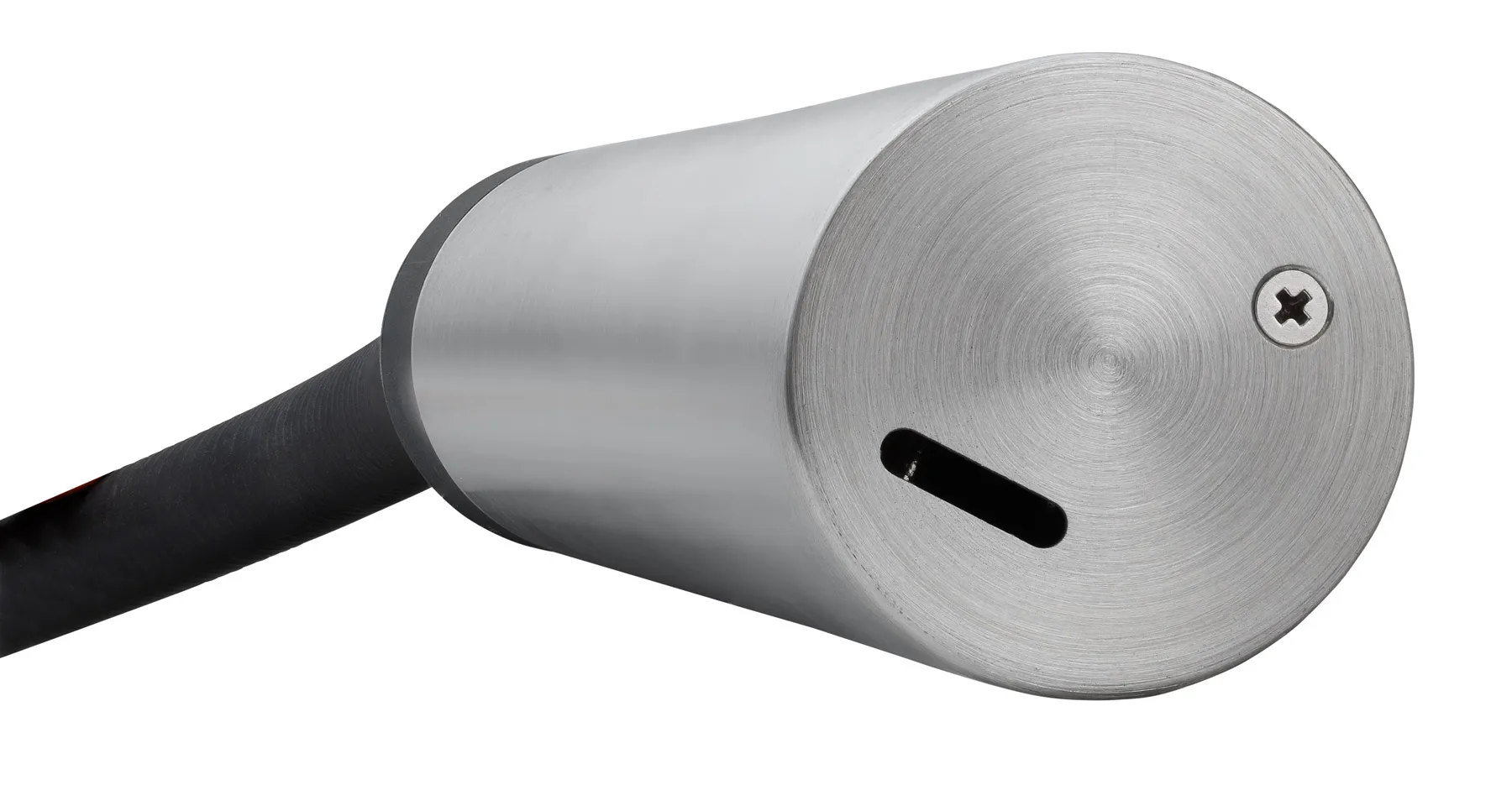

Heated printhead
Positive air, no plant air required (optional)
Diameter: 1.643” (41.3mm)
Length: 10.62” (269.8mm)
Ultra flexible
Length: 6.56” (2m) optional 9.84” (3m)
Diameter: 0.91” (23mm)
Bend radius: 4.0” (101.6mm)
Ink and Make-up Smart Cartridge™ 0.793 qt. (750ml)
32°F to 122°F (0°C to 50°C)
0% to 90% RH non-condensing
With selected inks; actual installation may require additional hardware based on production environment conditions
Nominal supply power 100-240 VAC at 50/60 Hz, 80W
Unpacked and dry: 39.5lbs (17.9kg)
Dry air kit for high humidity (requires plant air)
RS232 connector kit (USB to Serial DIN-5 male adapter)
SIMPLICiTY™ Workflow Modules
Wide range of accessories
Extended Speed Workflow Module
* CLARiSOFT Package Coding Design software required for bar codes and other advanced functionality.
